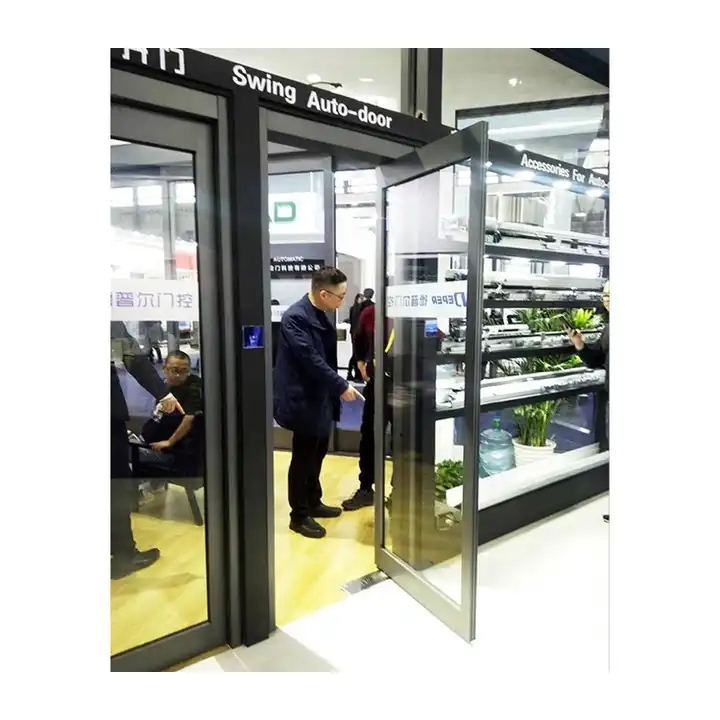

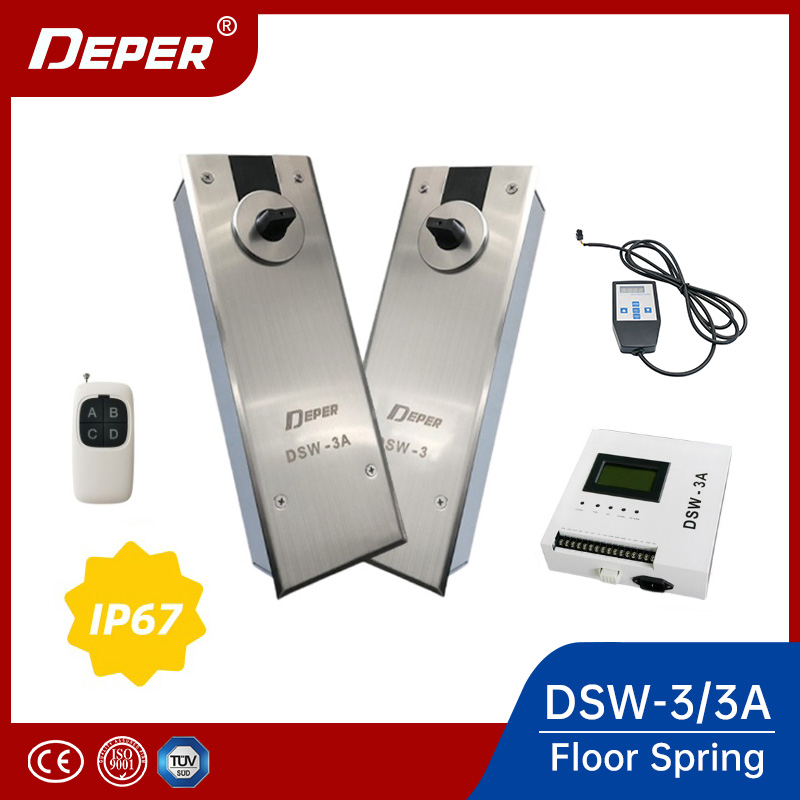

Dsw-3A Max. Door Weight 150kg Electric Ground Spring Floor Automatic Glass Swing Door Opener for Retail Stores

📋 Basic Specifications

Model NO.

DSW-3A

Material

Aluminum Alloy

Type

Swing

Opening Type

With Remote Control

Special Function

Security

Max Door Weight

150kg

Max Door Width

1200mm

Protection Level

IP67 / IP68

Temperature

-20°c ~ +55°c

Certification

TUV, ISO9001, CE

✨ Product Description

DSW-3A Max. door weight 150kg Electric Ground Spring Floor Automatic Glass Swing Door Opener

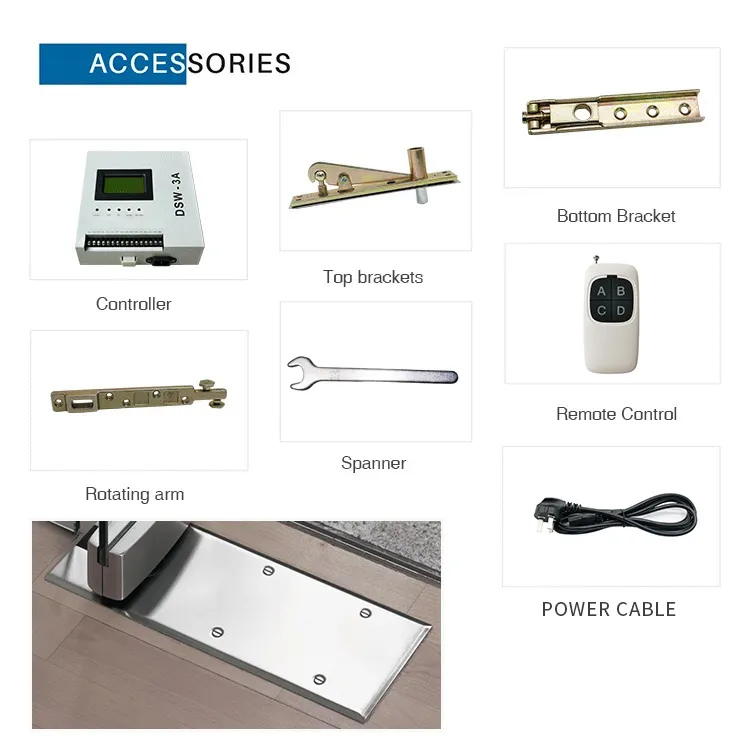

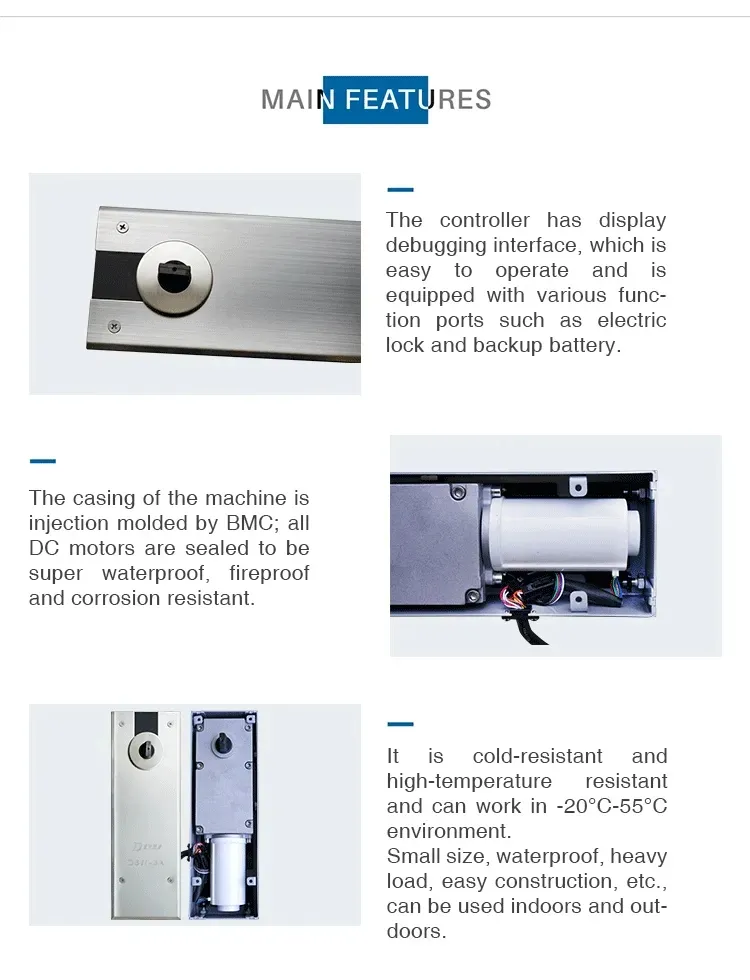

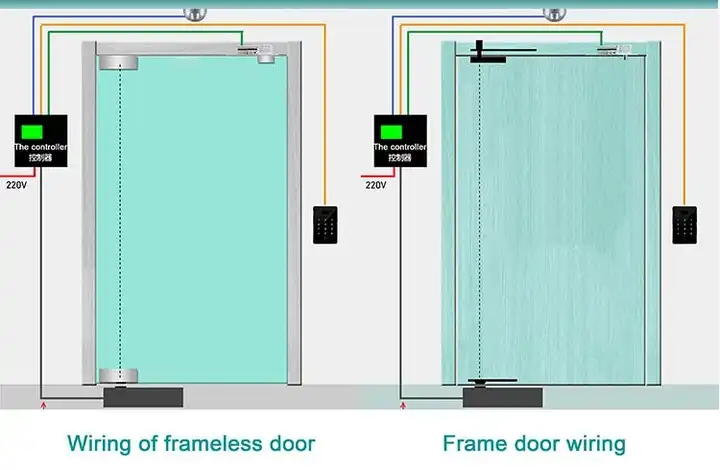

✔ The controller features a display debugging interface for easy operation, equipped with ports for electric locks and backup batteries.

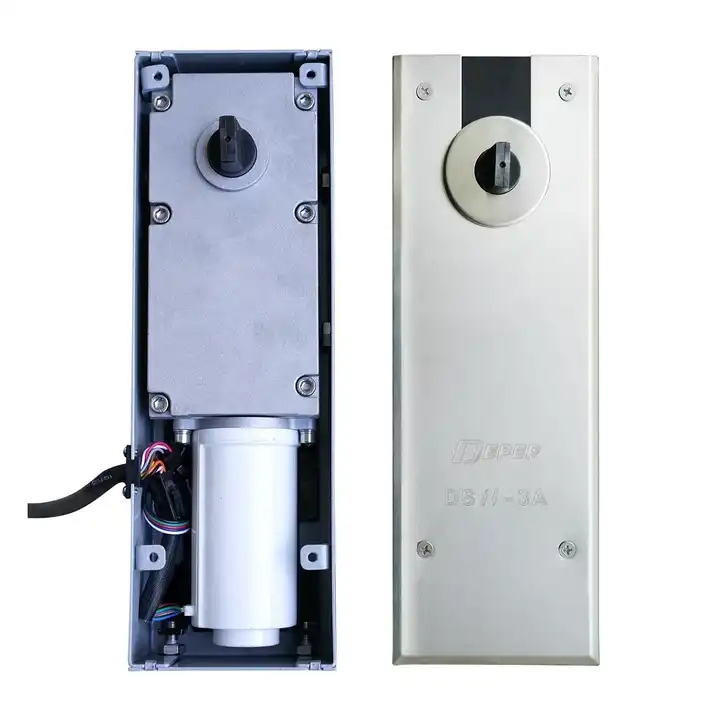

✔ BMC injection molded casing with sealed DC motors ensures waterproof, fireproof, and corrosion-resistant performance.

✔ Max load of 150KG. The DSW-3A unit opens up to 180 degrees, automatically sensing pedestrian direction.

✔ Weather-resistant design operates efficiently in environments ranging from -20°C to 55°C.

✔ Compact size with heavy load capacity, suitable for both indoor and outdoor ground embedding.

📊 Technical Data

Technical Specifications

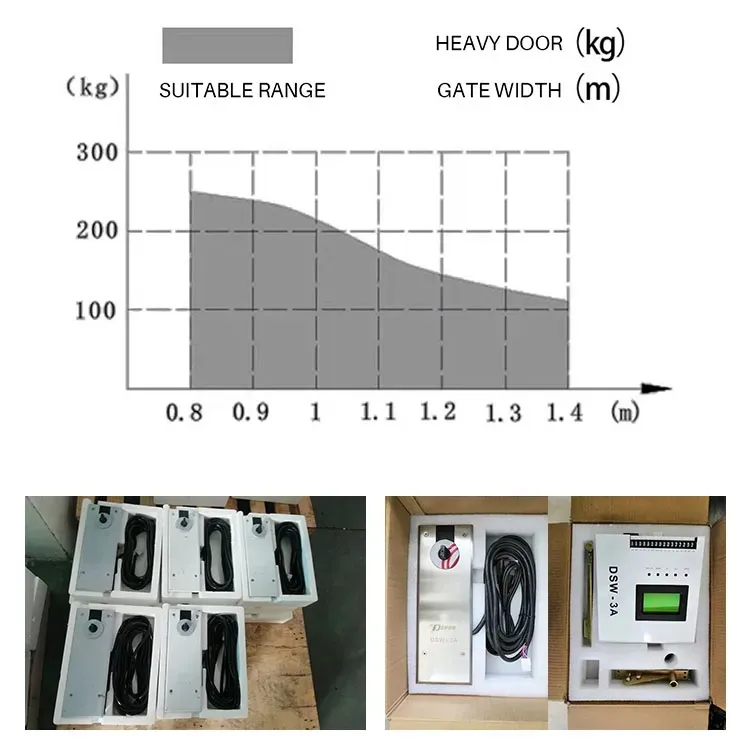

Maximum Door Weight	150kg
Maximum Door Width	1200mm
Maximum Torque	165Nm
Unit Weight	5.5kg

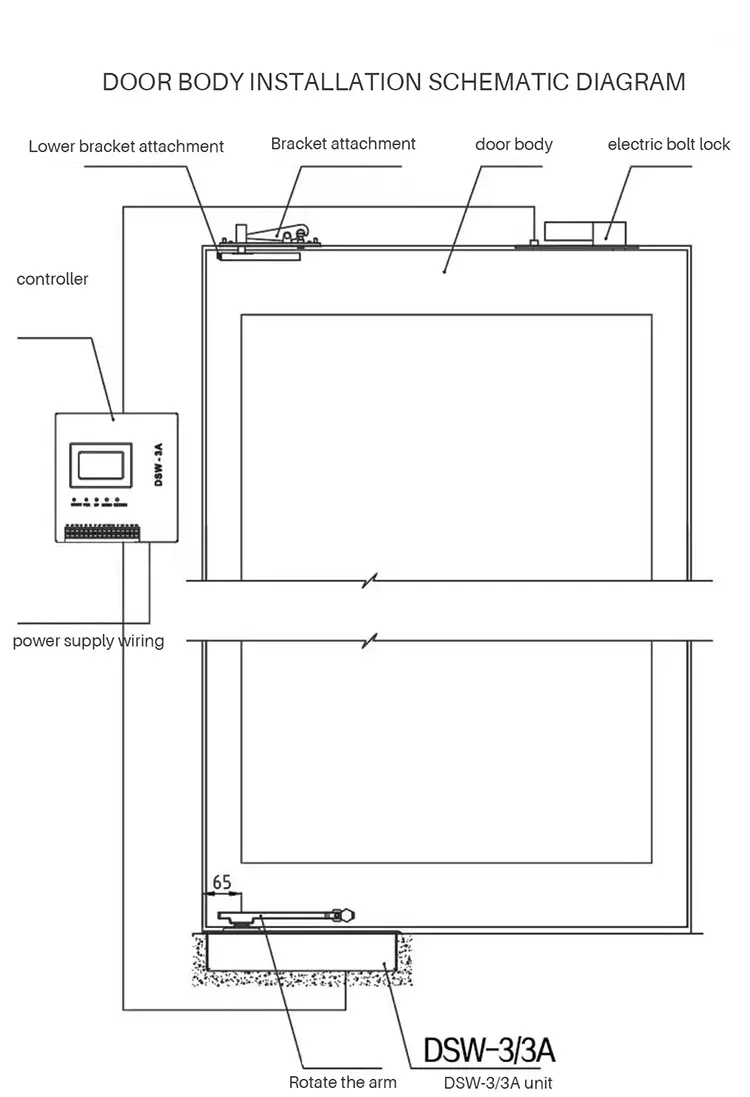

Installation Method	Ground Embedding
Running Noise	<60dB
Opening and Closing Time	6-12S
Opening Range	86°-95° (Standard) / 180° (DSW-3A)
Power Supply	AC220V±10% 50/60Hz
Rated Power	55W

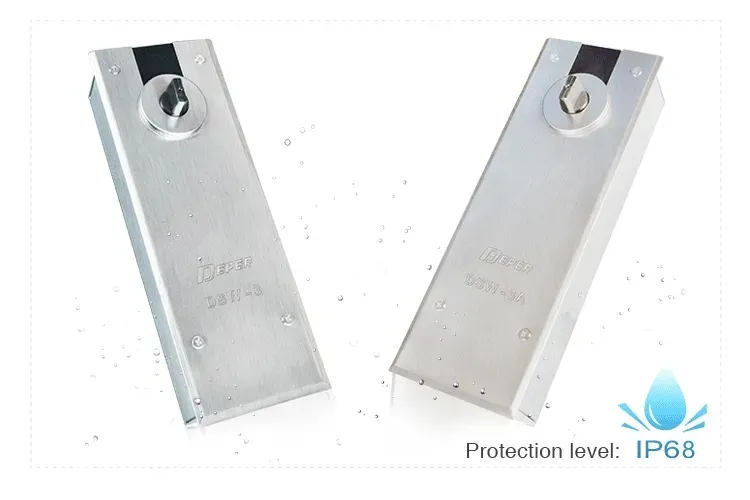

Protection Level	IP68

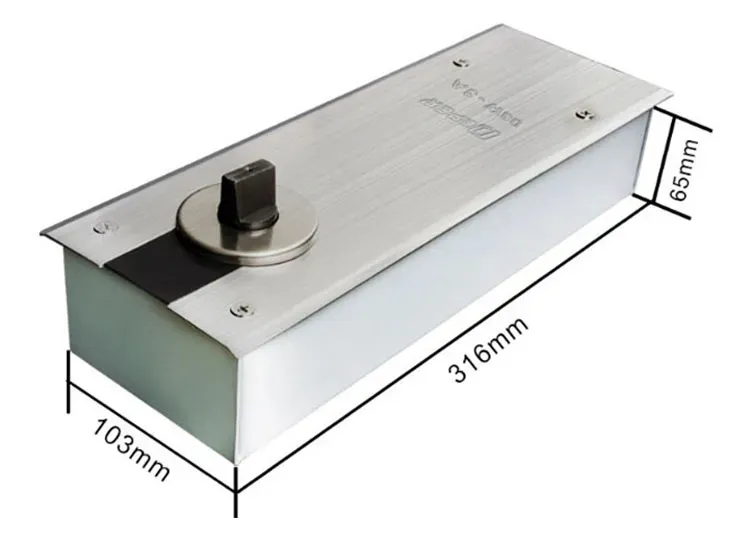

Unit Size	330 x 116 x 100 (mm)

📷 Product Details & Application

🖇 Certifications

Obtained "GF" EU certification and "AVC" certification. Certified as a National High-tech Enterprise. Passed ISO9001:2015 international quality system certification, ISO14001 environmental management system, and OHSAS18001 occupational health and safety management system certification.

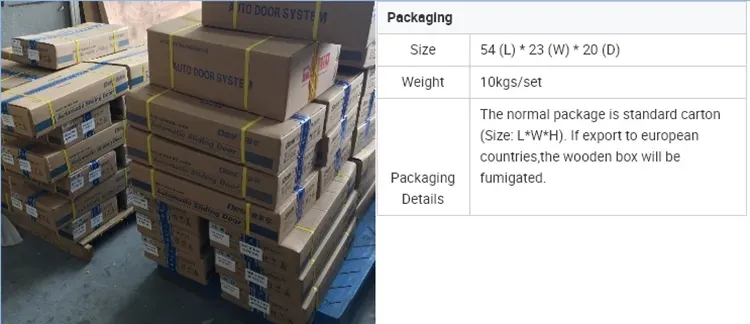

📦 Logistics & Services

Inquiries replied within 12 hours.
Sample delivery in 1-3 days; bulk orders in 3-5 days.
OEM/ODM service including custom packaging and logo design.

❓ Frequently Asked Questions

1. What is the maximum door weight the DSW-3A can handle? The system supports a maximum door weight of 150kg and a maximum door width of 1200mm.

2. Is the floor spring opener waterproof for outdoor use? Yes, it has an IP68 protection level, and the motors are sealed to be super waterproof, making it suitable for both indoor and outdoor ground embedding.

3. What are the operating temperature limits? The unit is designed to work in harsh environments ranging from -20°C to +55°C.

4. Can the door open to 180 degrees? Yes, the DSW-3A model is specifically designed to open up to 180 degrees and can automatically sense the passing direction of pedestrians.

5. Does it support remote control or electric locks? Yes, the controller includes various ports for remote control operation, electric locks, and backup battery systems.

6. How long does it take for the door to open? The opening and closing time is adjustable between 6 to 12 seconds.
