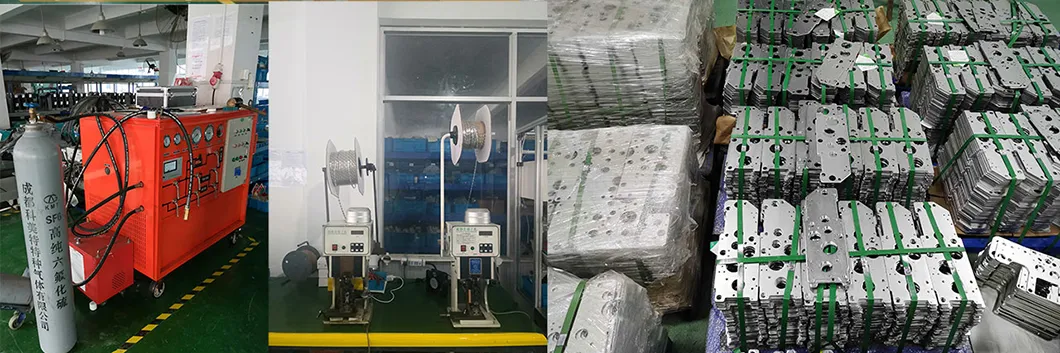

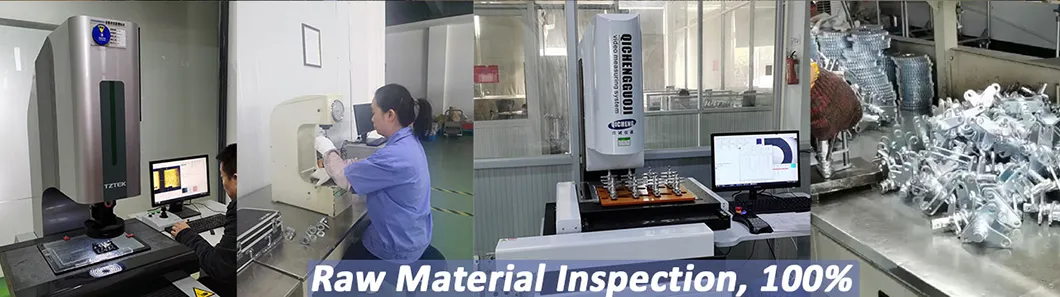

1. Raw Material Inspection

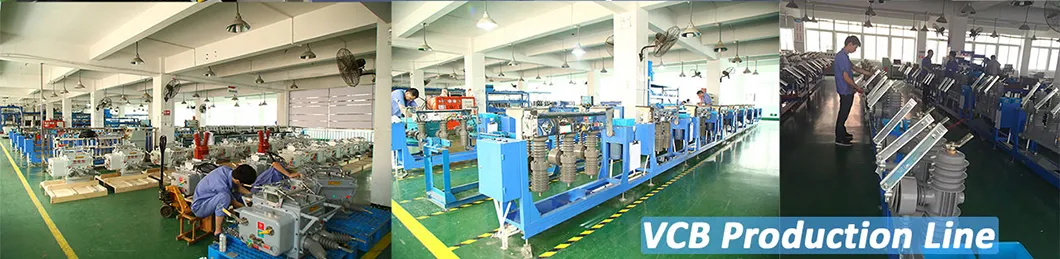

2. Production Line of Vacuum Circuit Breaker (VCB)

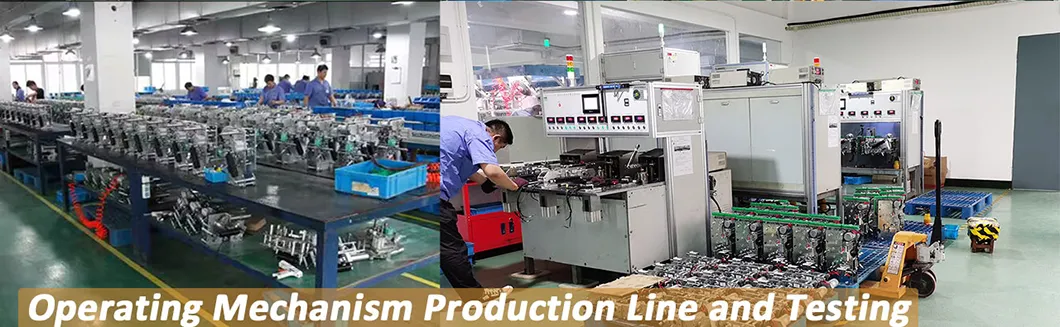

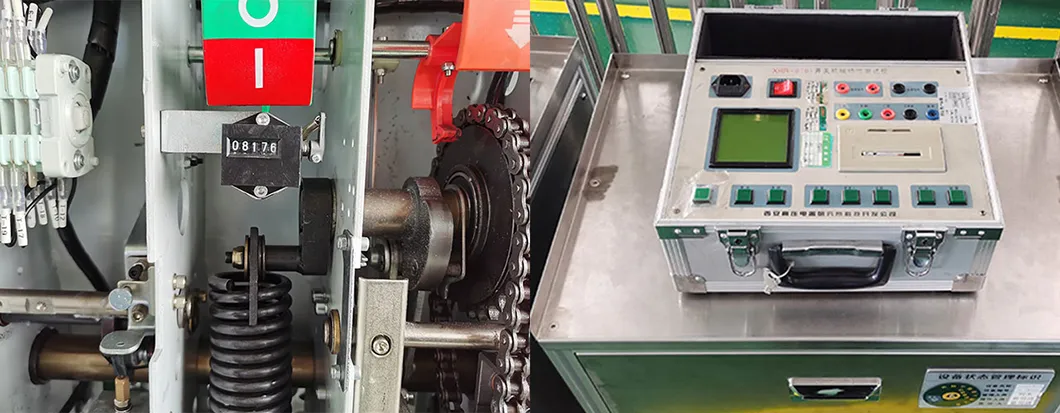

3. Operating Mechanism Production & Testing

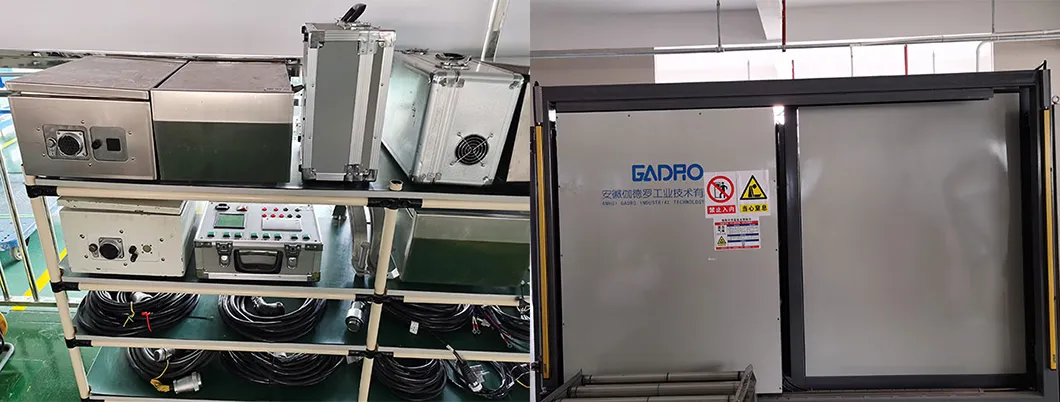

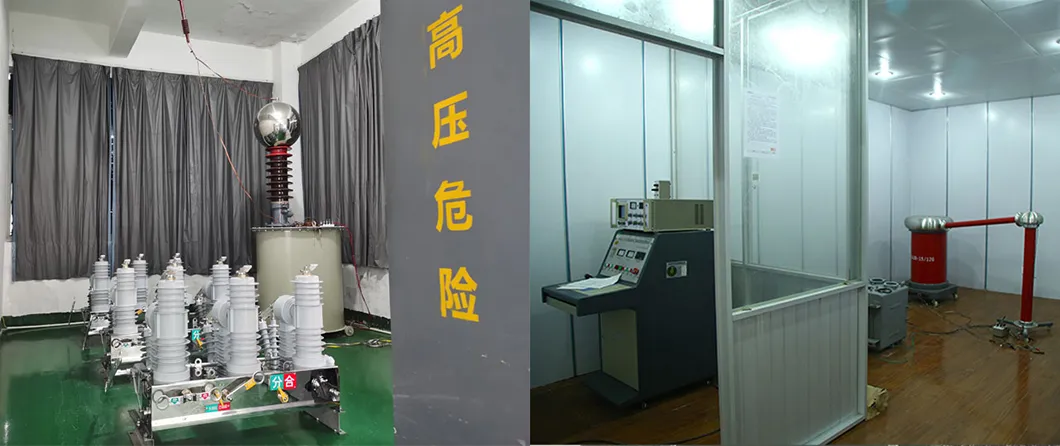

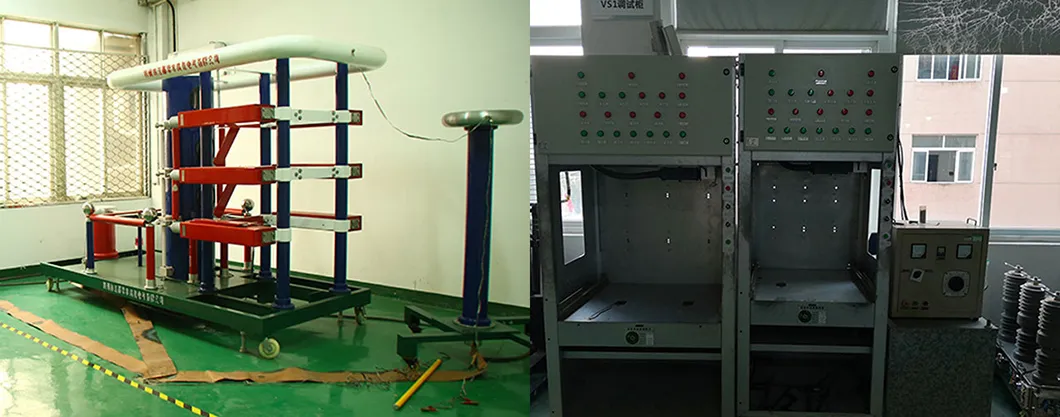

4. IEC Standard Test Equipment

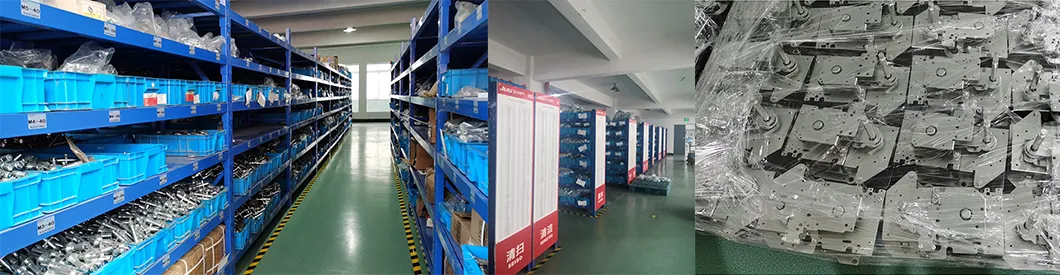

5. Warehouse & Logistics (6S Management)

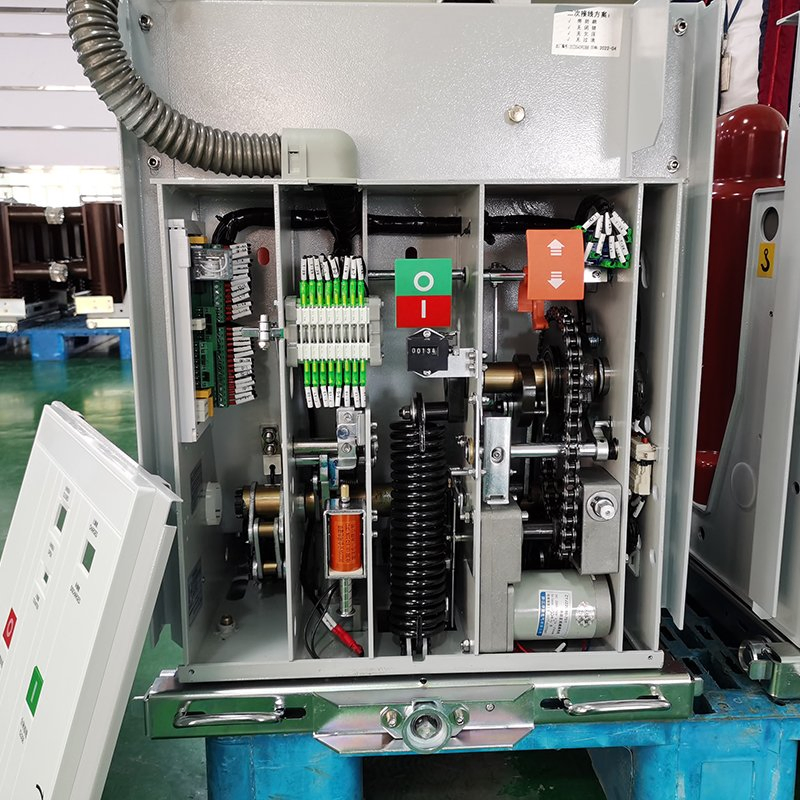

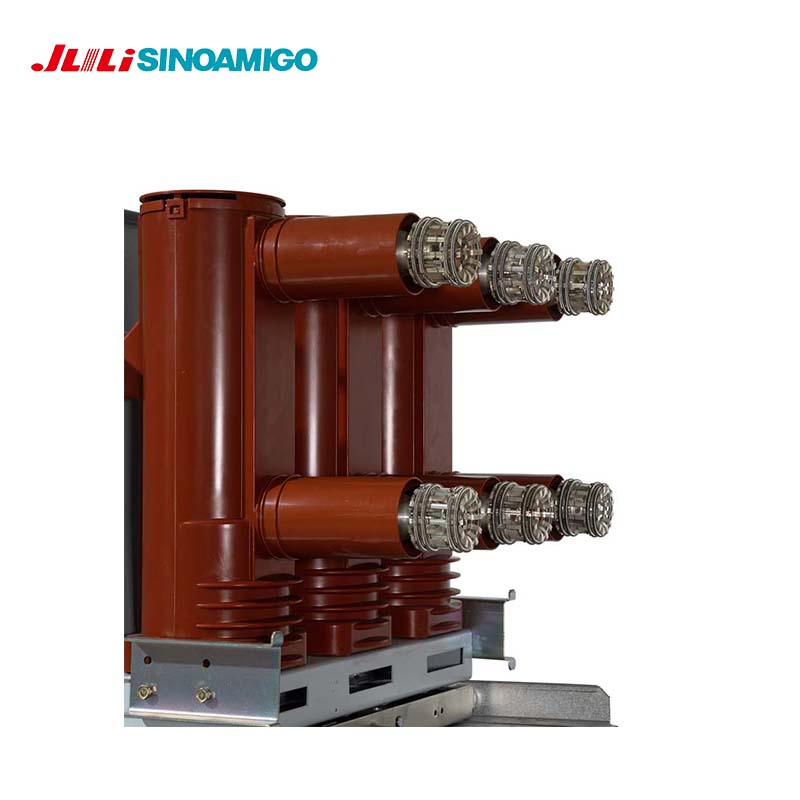

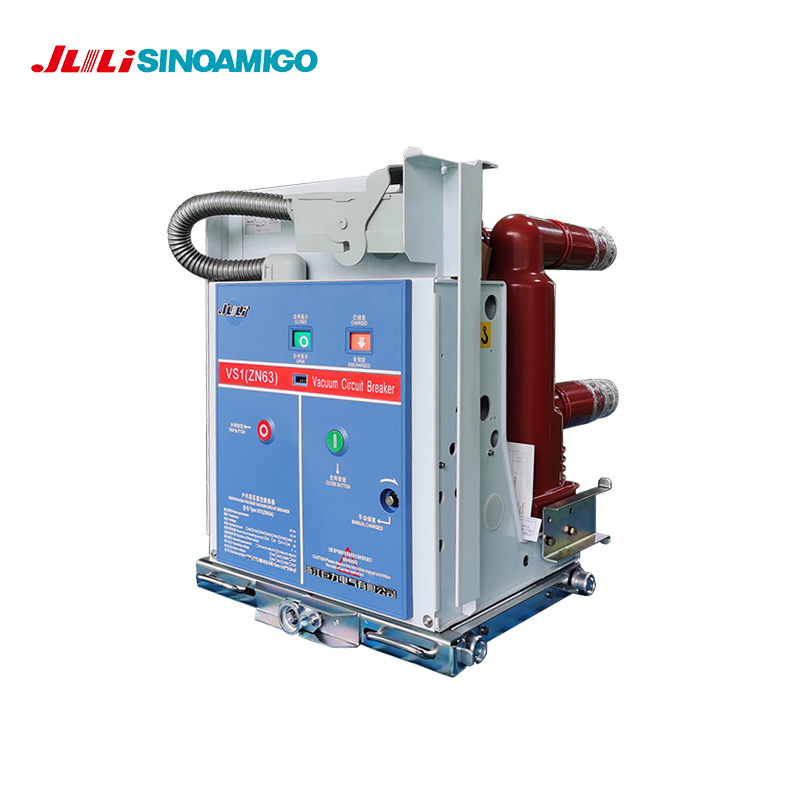

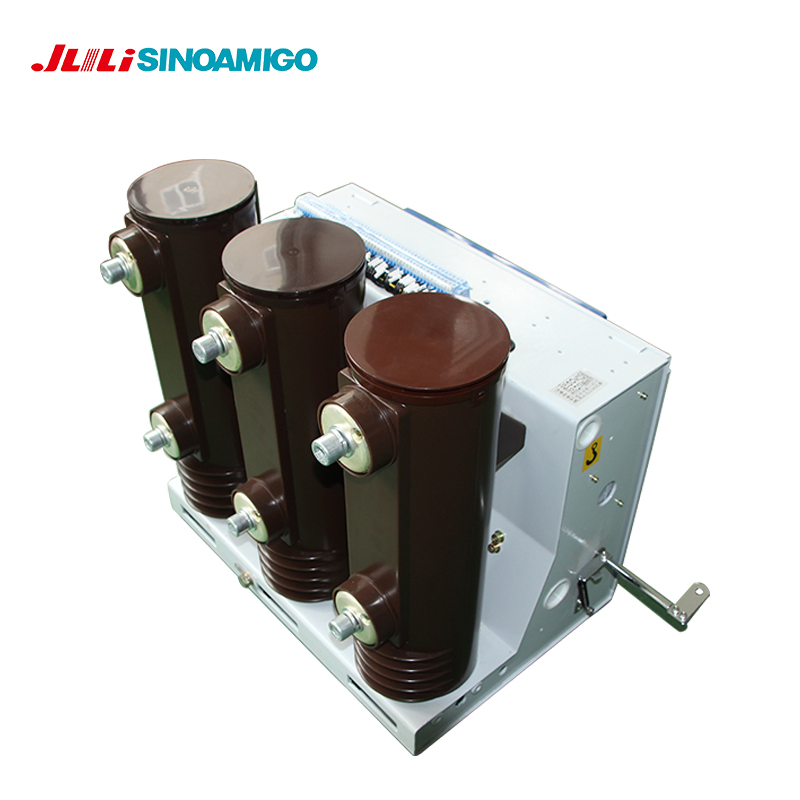

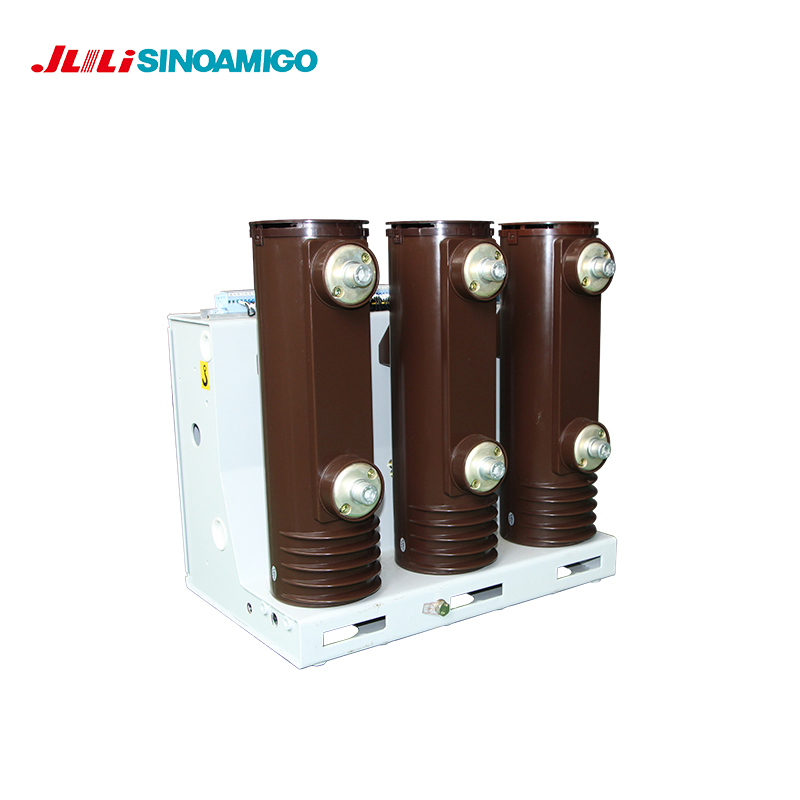

The VS1-24 indoor vacuum circuit breaker is designed for 24kV power systems, serving as a critical control and protection unit for electric networks and industrial equipment. Its integrated design combines the operating mechanism and the circuit breaker into a single unit, suitable for frequent operations with rated current or repeated short-circuit breaking. This product fully complies with GB1984 and IEC62271-100 standards.
| Technical Item | Unit | Data | |||
|---|---|---|---|---|---|
| Rated voltage | kV | 24 | |||
| Rated frequency | Hz | 50 / 60 | |||
| Insulation level | Power frequency (1 min) | kV | 65 | ||
| Lightning impulse (peak) | kV | 125 | |||
| Rated short circuit breaking current | kA | 20 | 25 | 31.5 | |
| Rated current | A | 630, 1250 | 630-1600 | 1250-2500 | |
| Mechanical life | Times | 10,000 | |||
| Operating voltage (Coils/Motor) | V | AC110/220, DC110/220 | |||
