Original Vsol Wholesale Low Price V2801rew ONU Support IPTV, STB1 LAN Port WiFi V Sol Modem
Original Vsol Wholesale Low Price V2801rew ONU Support IPTV, STB1 LAN Port WiFi V Sol Modem
Original Vsol Wholesale Low Price V2801rew ONU Support IPTV, STB1 LAN Port WiFi V Sol Modem
Original Vsol Wholesale Low Price V2801rew ONU Support IPTV, STB1 LAN Port WiFi V Sol Modem
Original Vsol Wholesale Low Price V2801rew ONU Support IPTV, STB1 LAN Port WiFi V Sol Modem
1 / 5
Original Vsol Wholesale Low Price V2801rew ONU Support IPTV, STB1 LAN Port WiFi V Sol Modem
Original Vsol Wholesale Low Price V2801rew ONU Support IPTV, STB1 LAN Port WiFi V Sol Modem
Original Vsol Wholesale Low Price V2801rew ONU Support IPTV, STB1 LAN Port WiFi V Sol Modem
Original Vsol Wholesale Low Price V2801rew ONU Support IPTV, STB1 LAN Port WiFi V Sol Modem
Original Vsol Wholesale Low Price V2801rew ONU Support IPTV, STB1 LAN Port WiFi V Sol Modem

Original Vsol Wholesale Low Price V2801rew ONU Support IPTV, STB1 LAN Port WiFi V Sol Modem

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
V2801REW
Product Warranty
1 Year
Use
FTTH
Production Lead Time
10-25 Days
Supply Capacity
10,000PCS Per Month
Transport Package
Paper Box
Origin
China
📌 Product Overview
Original V2801REW ONU - Support IPTV, STB, 1 LAN Port & WiFi

Introducing the V2801REW ONU - Your Gateway to Affordable, High-Quality Networking with IPTV Support! This unit is designed to bring a powerful, all-in-one networking solution at an unbeatable price, offering a seamless experience for both Internet Protocol Television (IPTV) and broadband connectivity.

📺 IPTV Support Built-in support for IPTV ensures uninterrupted streaming of high-definition content, enhancing user entertainment experiences.
💻 STB1 LAN Port Perfect for connecting Set-Top Boxes, making it easy to enjoy cable TV and video-on-demand services alongside broadband.
📑 WiFi Connectivity Features WiFi capabilities, allowing users to connect devices wirelessly with total freedom for home or office needs.
💲 Cost-Efficiency Combines advanced networking features at a highly competitive price point for maximum value for investment.
⚙ Hardware Parameters
Hardware & Interface Details
Dimension120mm×78mm×30mm (L×W×H)
Net weight0.15Kg
Operating ConditionTemp: 0 ~ +50°C | Humidity: 10~90% (non-condensed)
Power AdapterDC 12V, 0.5A, External AC-DC Power Adaptor
Interfaces1GE + WiFi4
IndicatorsPOWER, LOS, PON, LAN, WiFi
PON InterfaceXPON (EPON PX20+ & GPON Class B+), SC/UPC, 20KM distance
WiFi InterfaceIEEE802.11b/g/n, 300Mbps, Support 13 Channels
📊 Functional Data
Software & Performance
PON ModeXPON Dual mode (EPON/GPON OLTs access)
Software ModeRouting mode
FirewallDDOS, Filtering Based on ACL/MAC/URL
Layer 2802.1D & 802.1ad bridge, 802.1p Cos, 802.1Q VLAN
Layer 3IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS
MulticastIGMP v1/v2/v3, IGMP snooping
SecurityFlow & Storm control, Loop Detection
O&MWEB/TELNET/OAM/OMCI/TR069
📷 Product Gallery

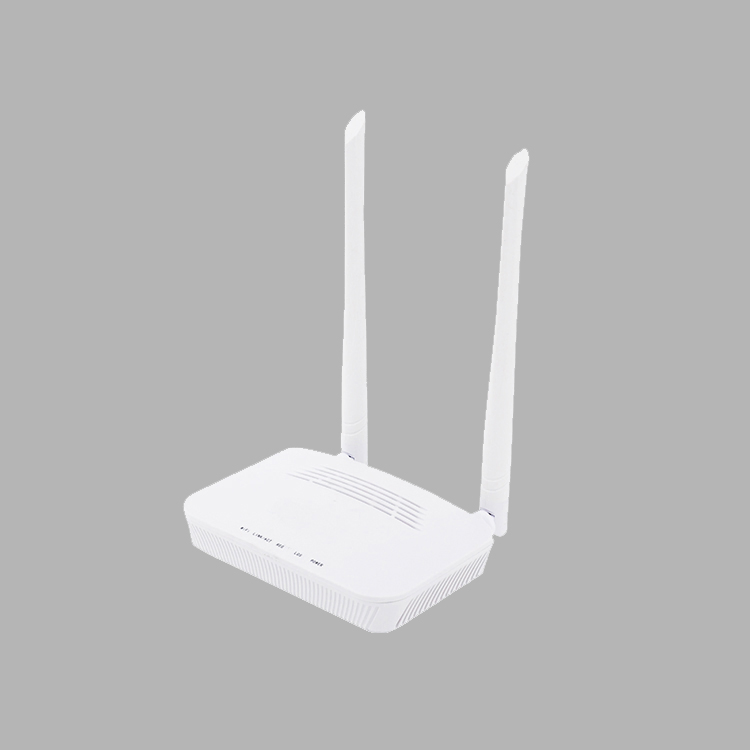

V2801REW Front View

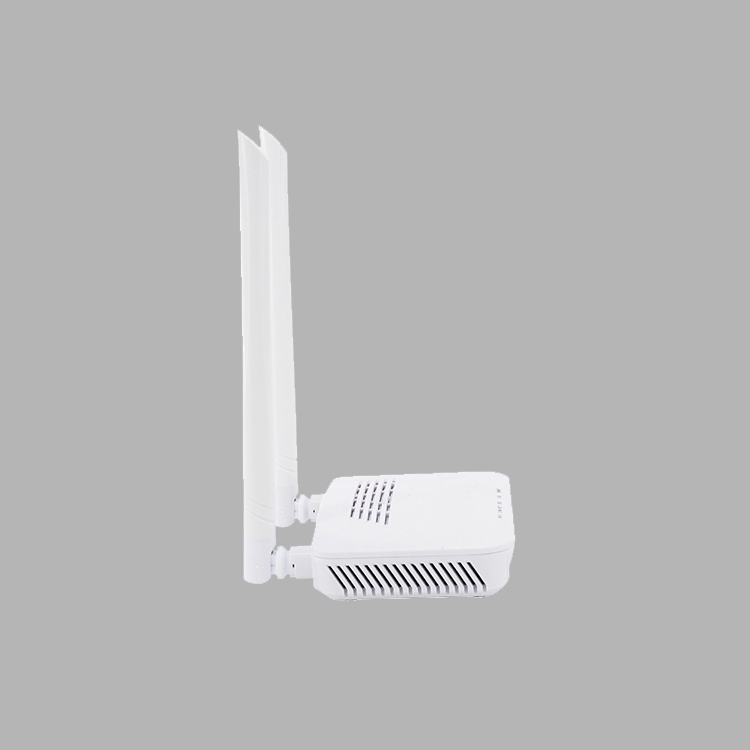

V2801REW Side Detail

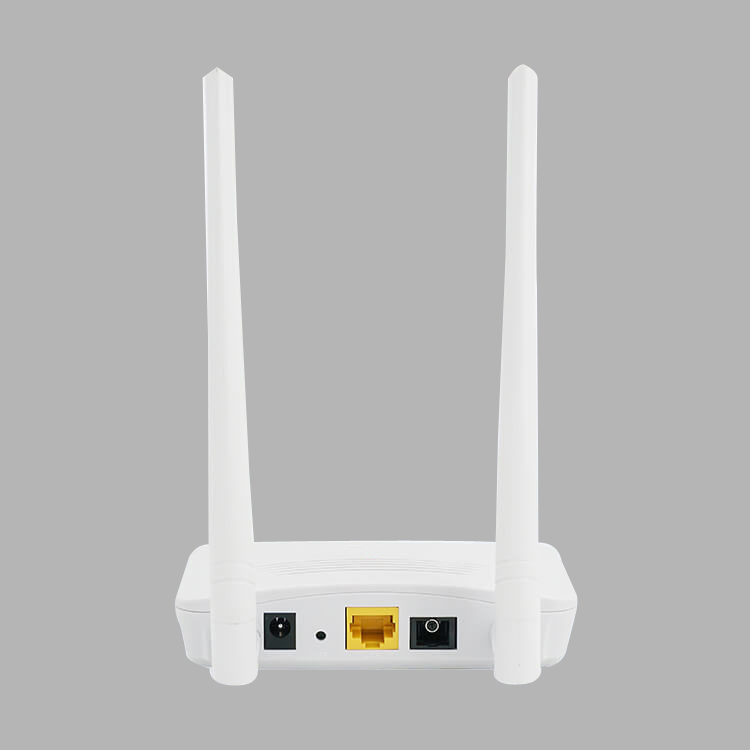

V2801REW Ports

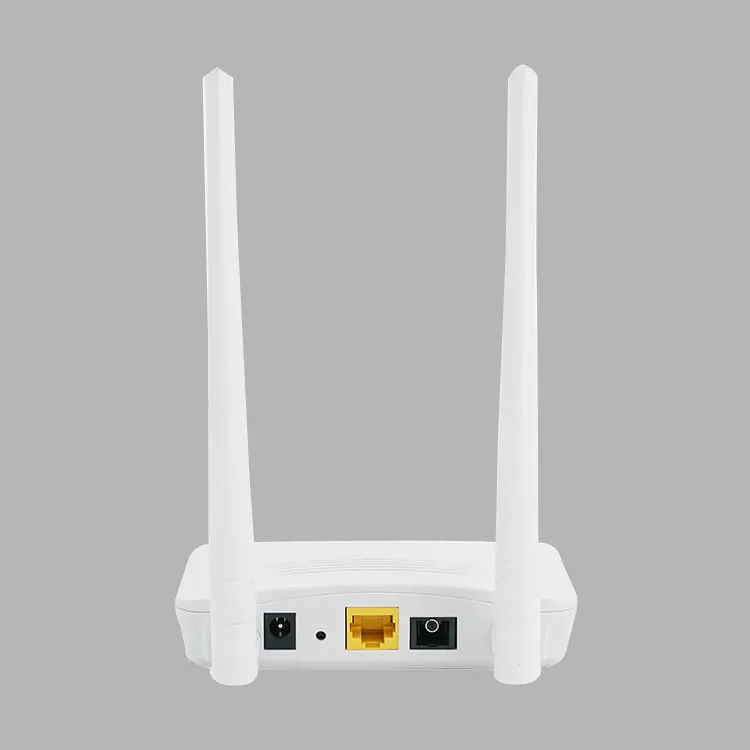

V2801REW Connectivity
FAQ
Does the V2801REW support both GPON and EPON?
Yes, it features XPON Dual Mode, which allows it to access both mainstream EPON and GPON OLTs seamlessly.
What is the maximum WiFi speed available?
The device supports IEEE802.11b/g/n standards with a maximum transmission rate of 300Mbps.
Can I use this device for IPTV services?
Absolutely. It has built-in support for IPTV and includes a dedicated STB1 LAN port for easy Set-Top Box integration.
What is the transmission range of the PON interface?
The V2801REW supports a standard transmission distance of up to 20KM.
Does the device include security features like a firewall?
Yes, it includes built-in security features such as DDOS protection and filtering based on ACL, MAC, and URL addresses.
What type of fiber connector is required?
The device uses an SC/UPC connector for single-mode fiber connections.
