Advanced Poultry Equipment with Automatic Control System
A professional integrated solution for modern broiler farms, committed to providing the most advanced technology and highest quality products to support fast growth and efficient farm management.

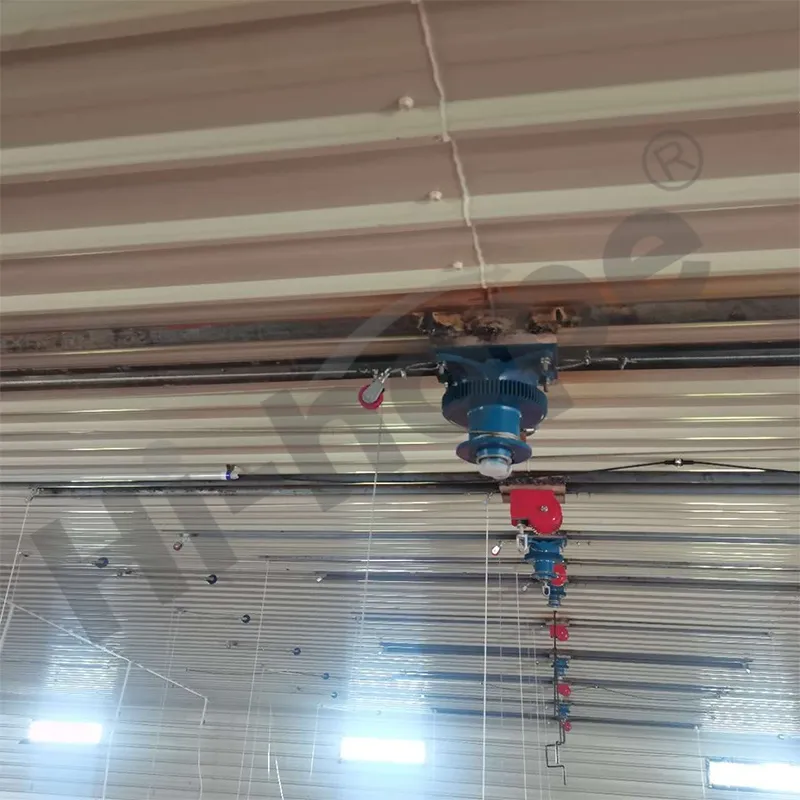

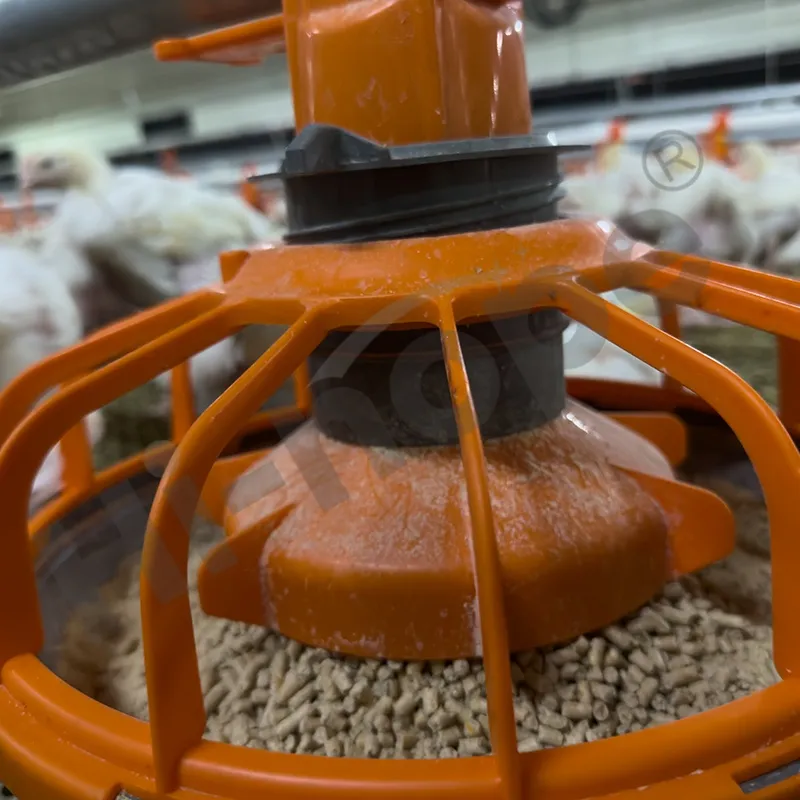

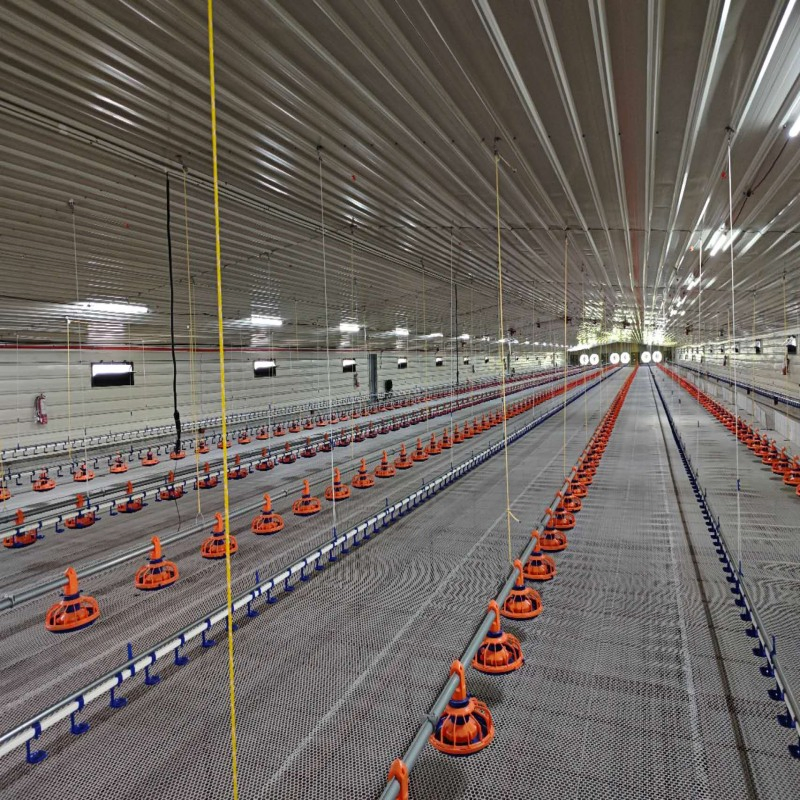

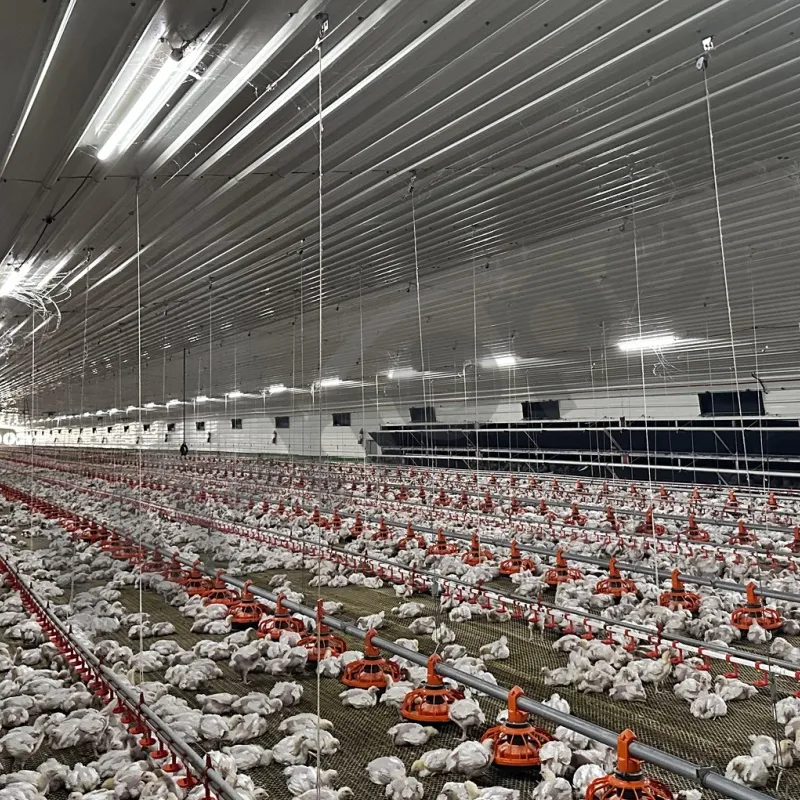

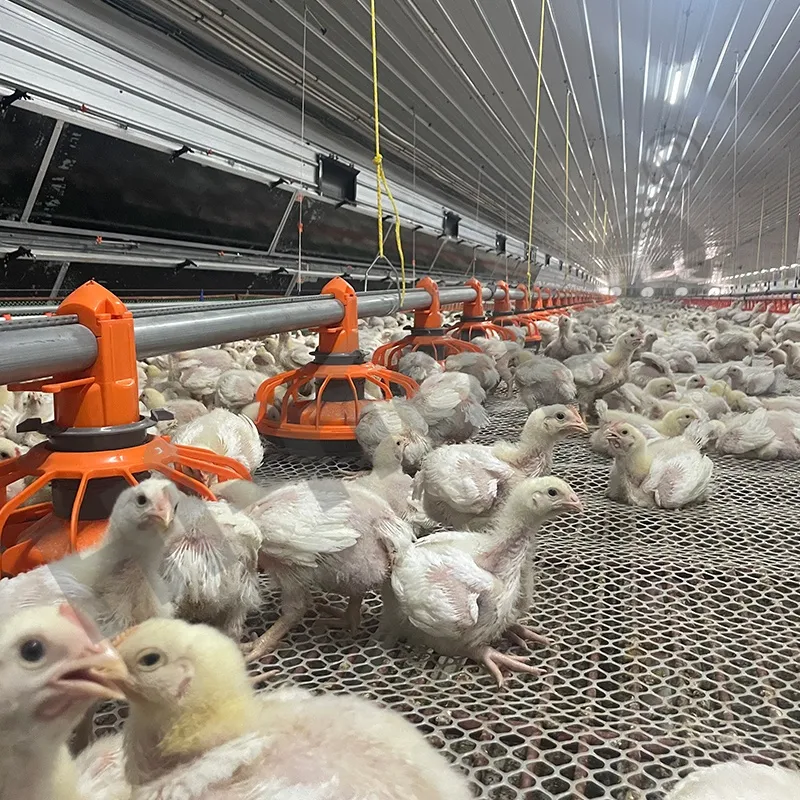

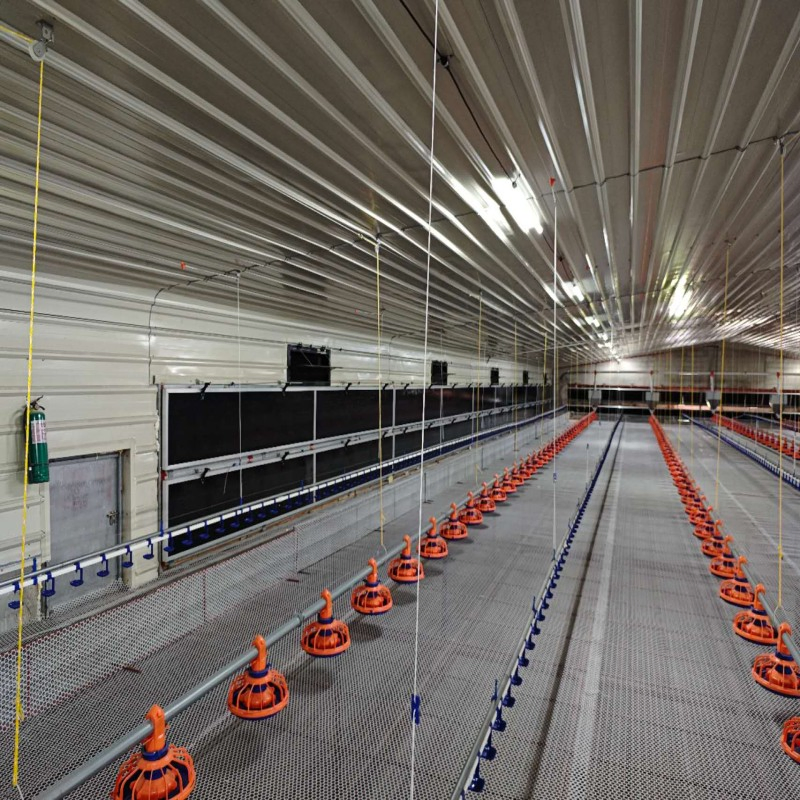

Includes the Drive Motor, Broiler Chicken Feeder, Feed Pipe, Flexible Feed delivery Auger, and Suspension system. The system uses highly stable drive motors and world-class flexible augers to ensure efficient automatic operation. Designed for birds from day one to harvest, optimizing FCR (Feed Conversion Ratio).

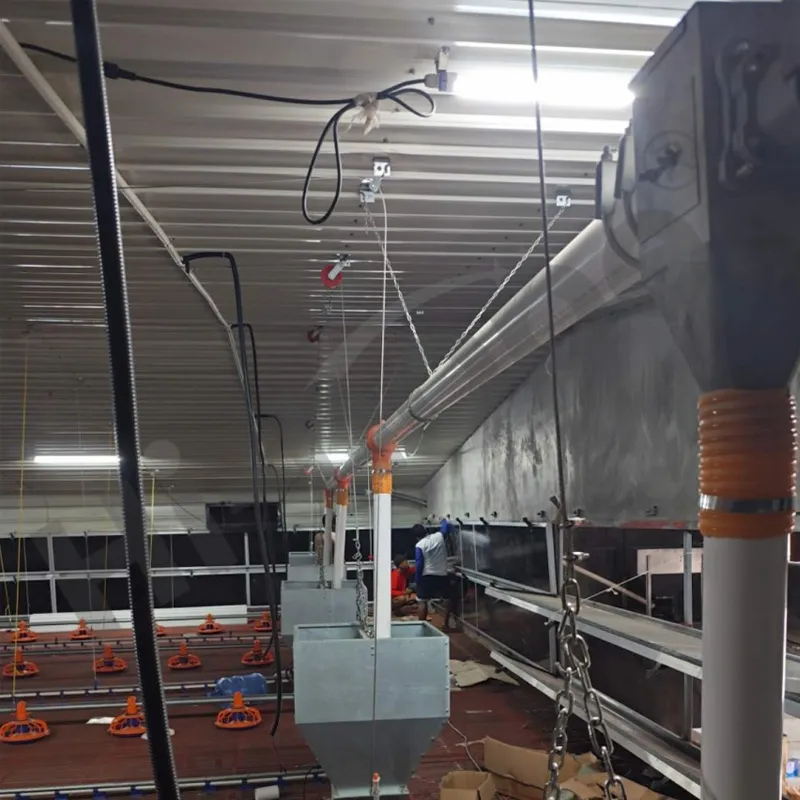

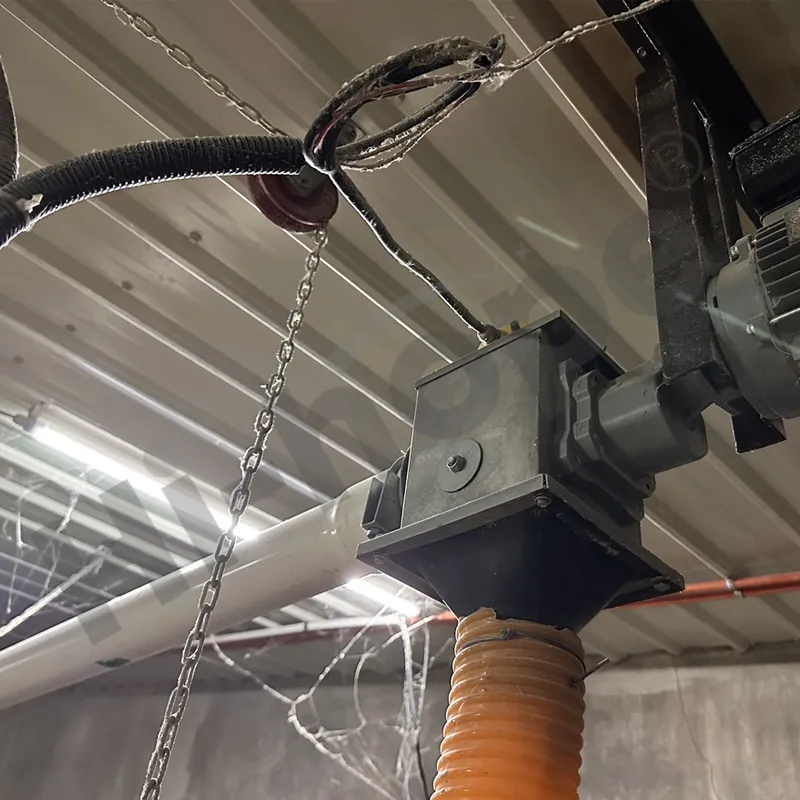

Features high-quality feed silos, flexible delivery augers, and PVC pipes for simple yet efficient feed management.
| Feed Fill System | 75mm | 90mm |
|---|---|---|
| Max Delivery Length | 60m | 40m |
| Gear Motor | 1.1HP/1.5HP, 50/60HZ | 1.1HP/1.5HP, 50/60HZ |
| Delivery Capacity | 1400KGS/H | 2500KGS/H |

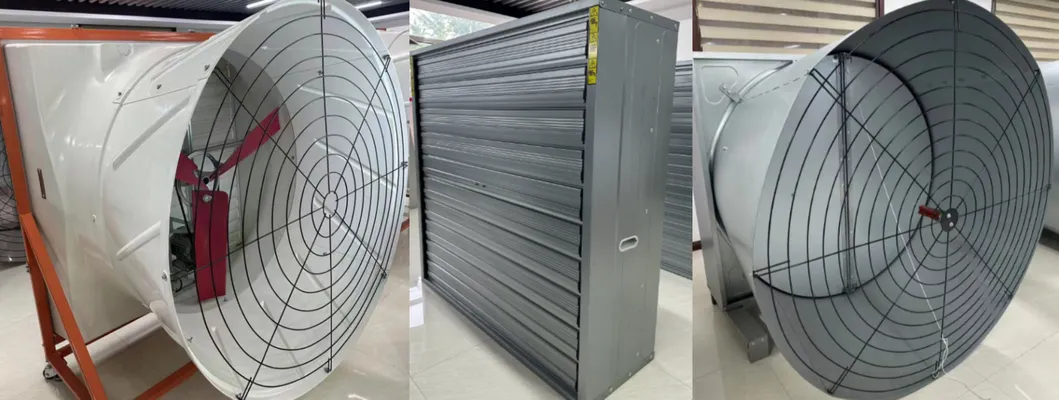

| Fan Model | Static Pressure (Pa) | Air Flow (M³/H) | Voltage | Phases |
|---|---|---|---|---|
| 54in Fiberglass Cone Fan | 0 / 12.5 / 25 | 55000 / 53100 / 50800 | 220v-380v | 1 or 3 |
| 50in Galvanized Cone Fan | 0 / 12.5 / 25 | 49530 / 40194 / 37236 | 220v-380v | 1 or 3 |

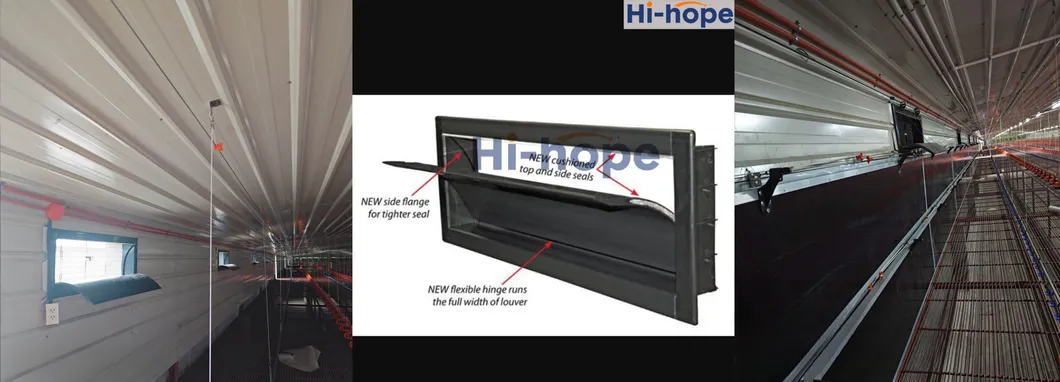

| Type | Static Pressure (Pa) | Air Flow (M³/H) | Size (mm) |
|---|---|---|---|

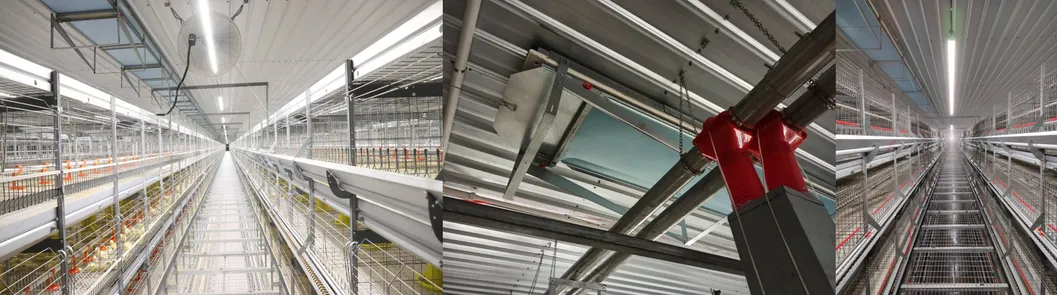

| Curved Air Inlet | 12 / 25 | 4050 / 1980 | 1100*330 |

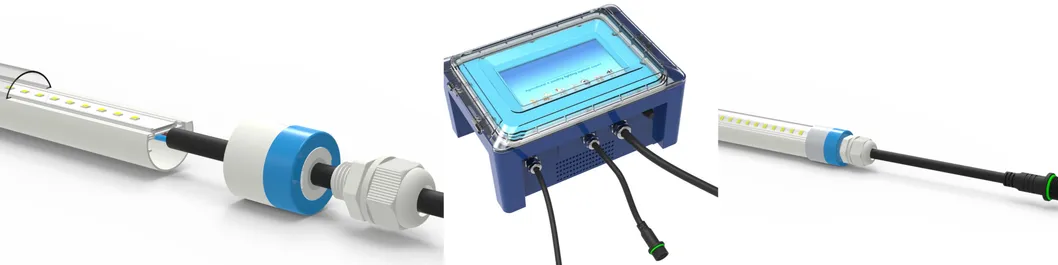

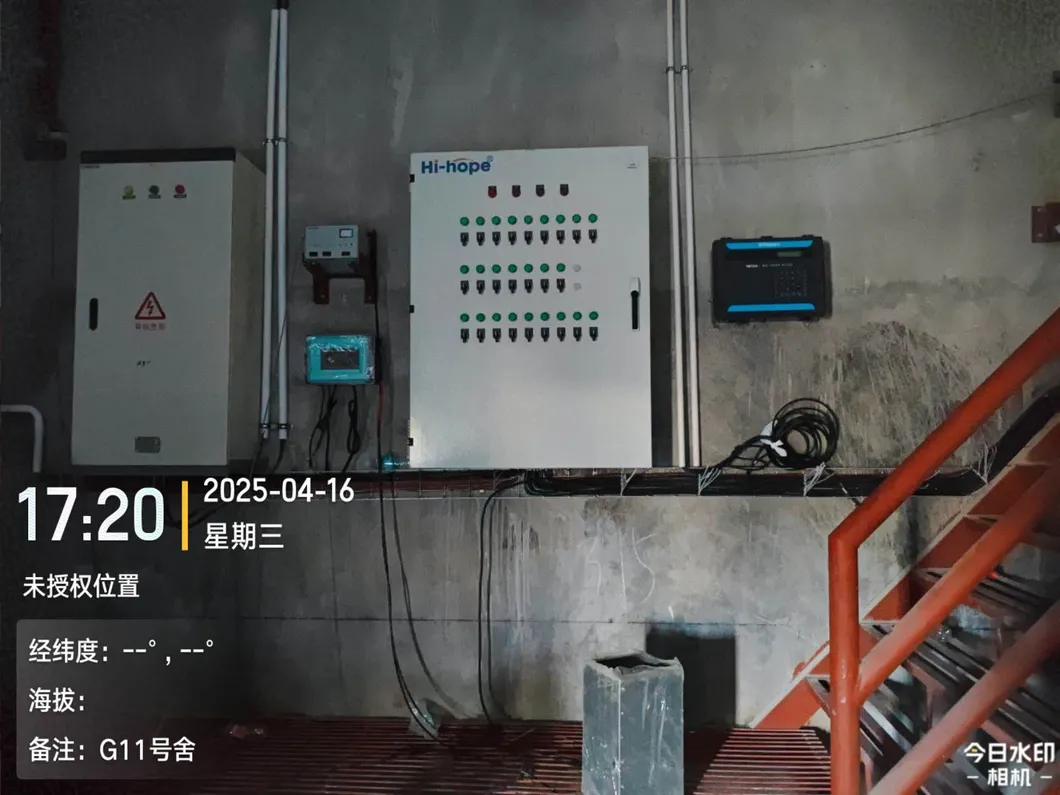

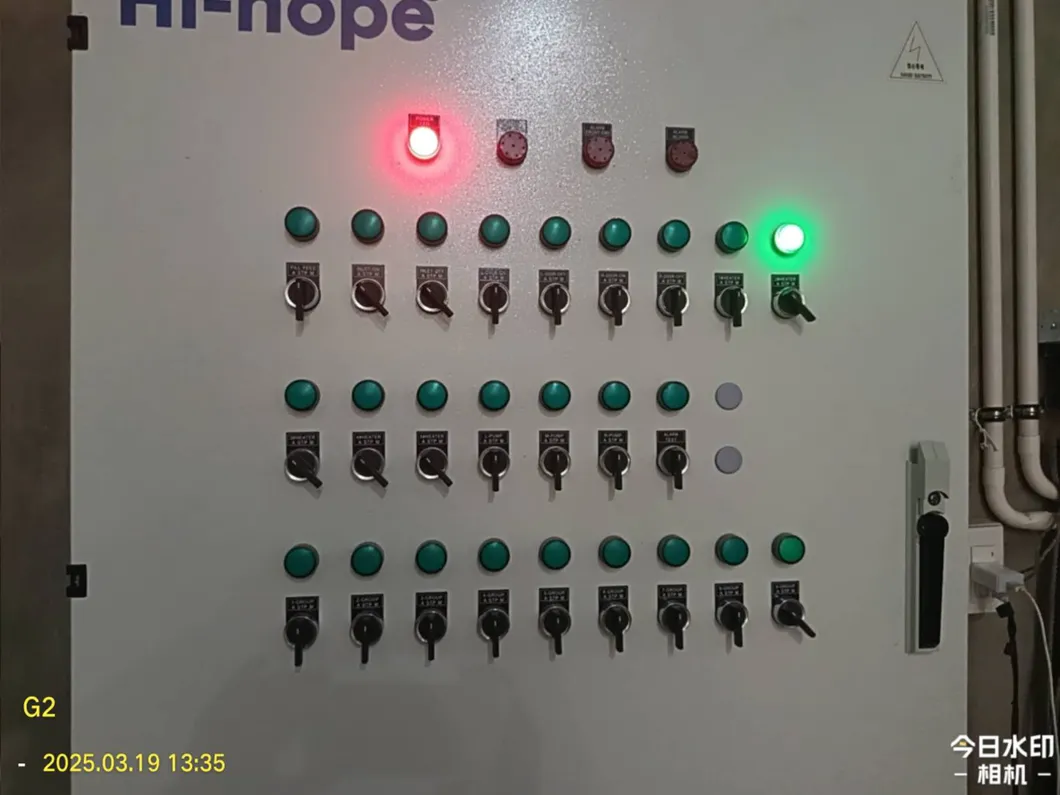

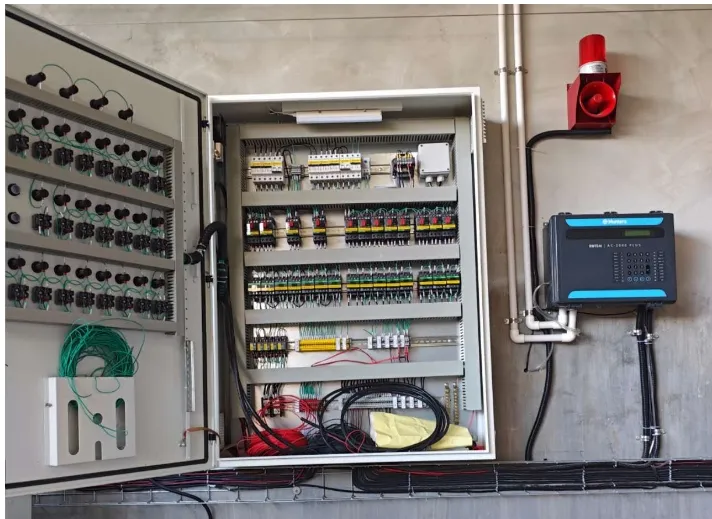

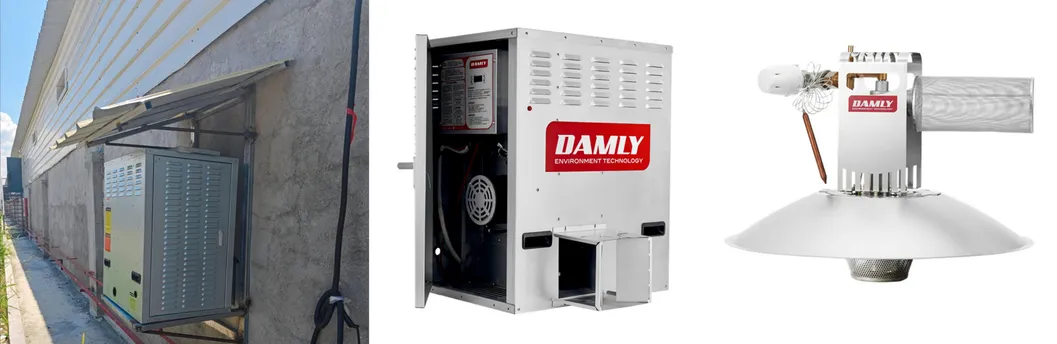

The computerized control system regulates temperature, humidity, and wind speed using high-end components like Schneider and Siemens. Coupled with dimmable lighting and efficient heating systems, it creates the perfect environment for poultry growth.
All products are packed to export standards, suitable for long-distance ocean transportation to ensure safe delivery.
We offer an experienced after-sales team with over 20 years of expertise. We respond to customer feedback within 24 hours to ensure continuous operation.
