Basic Specifications
Certification
CE, RoHS, ISO 9001:2000
Drill Hole Diameter
150-200mm
💧
Product Overview

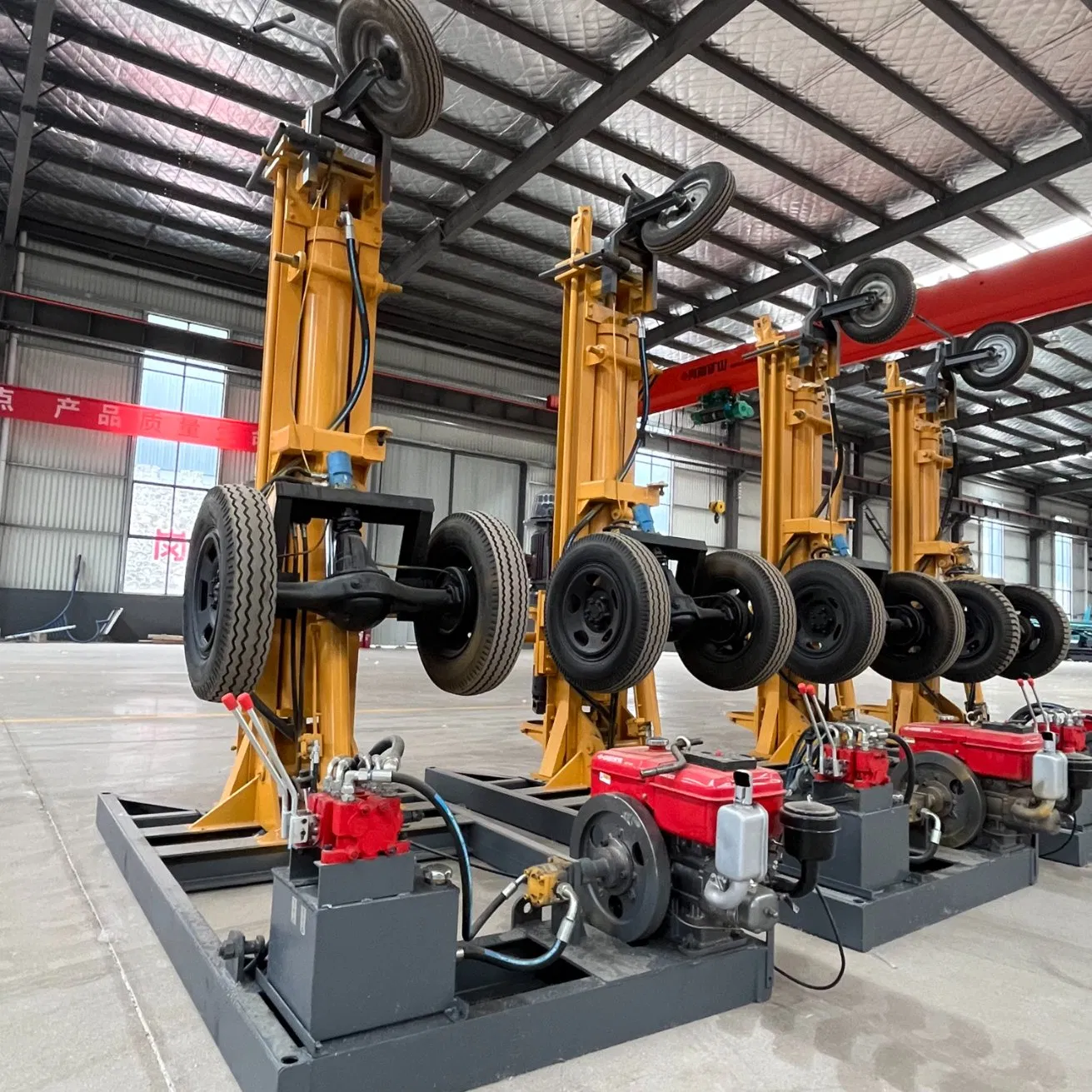

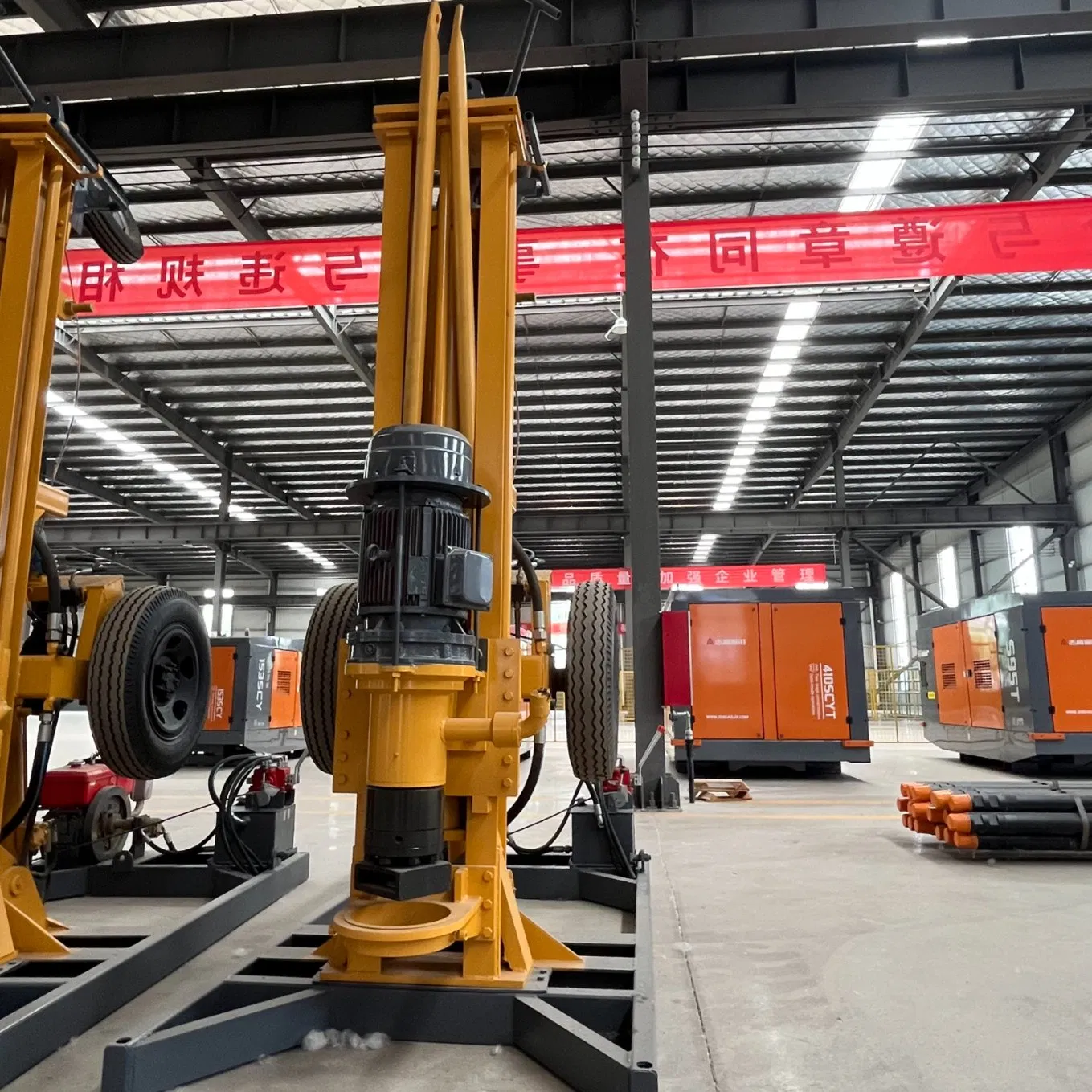

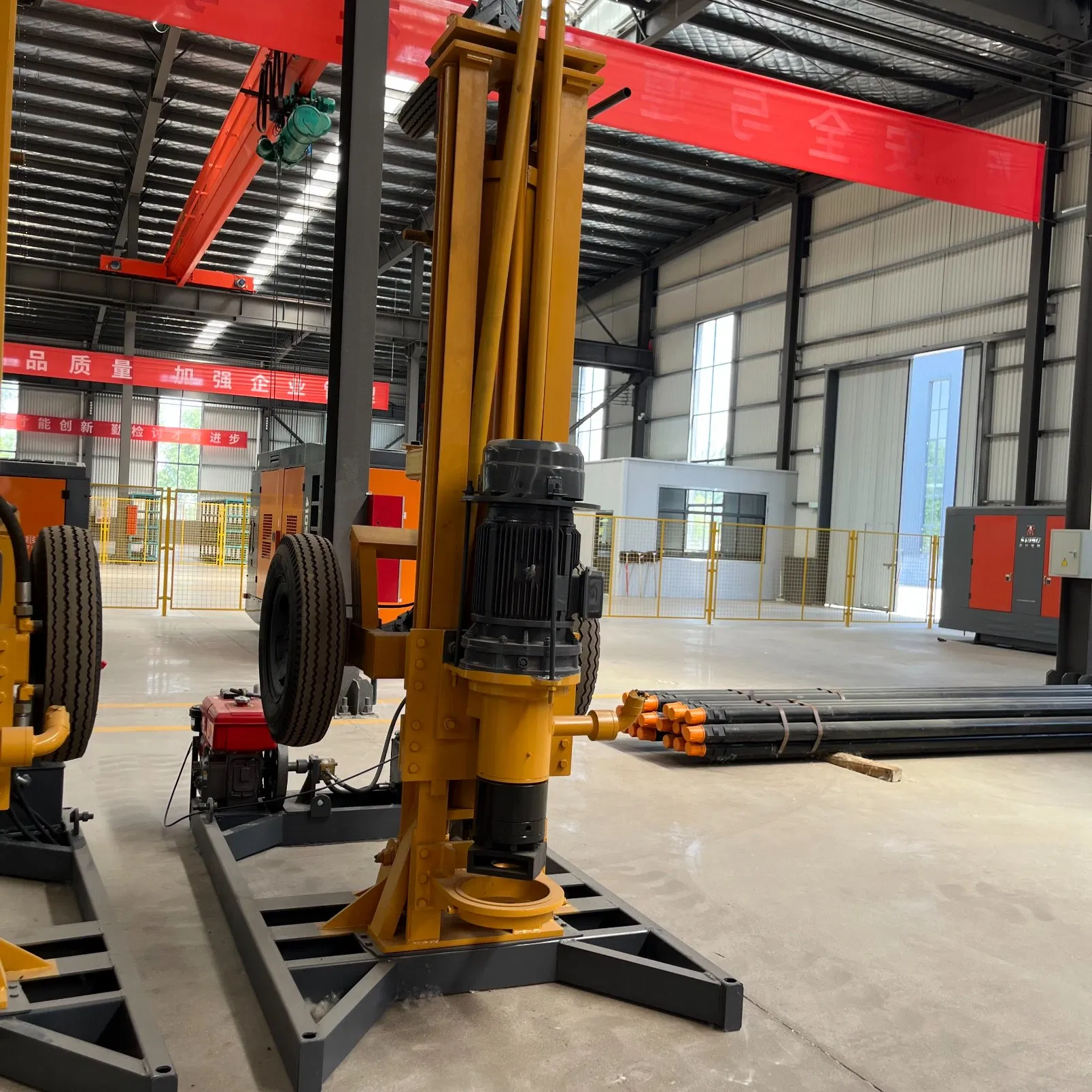

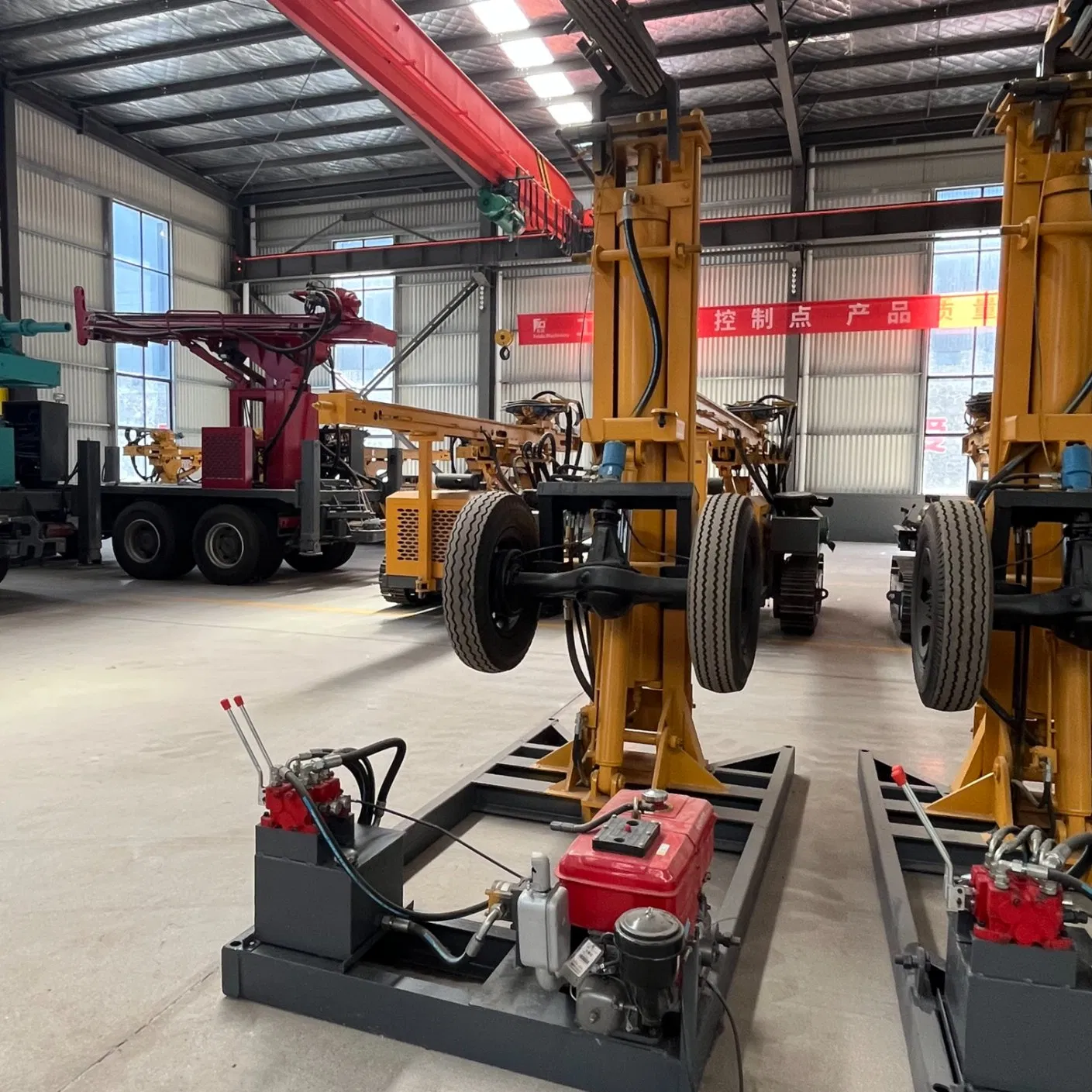

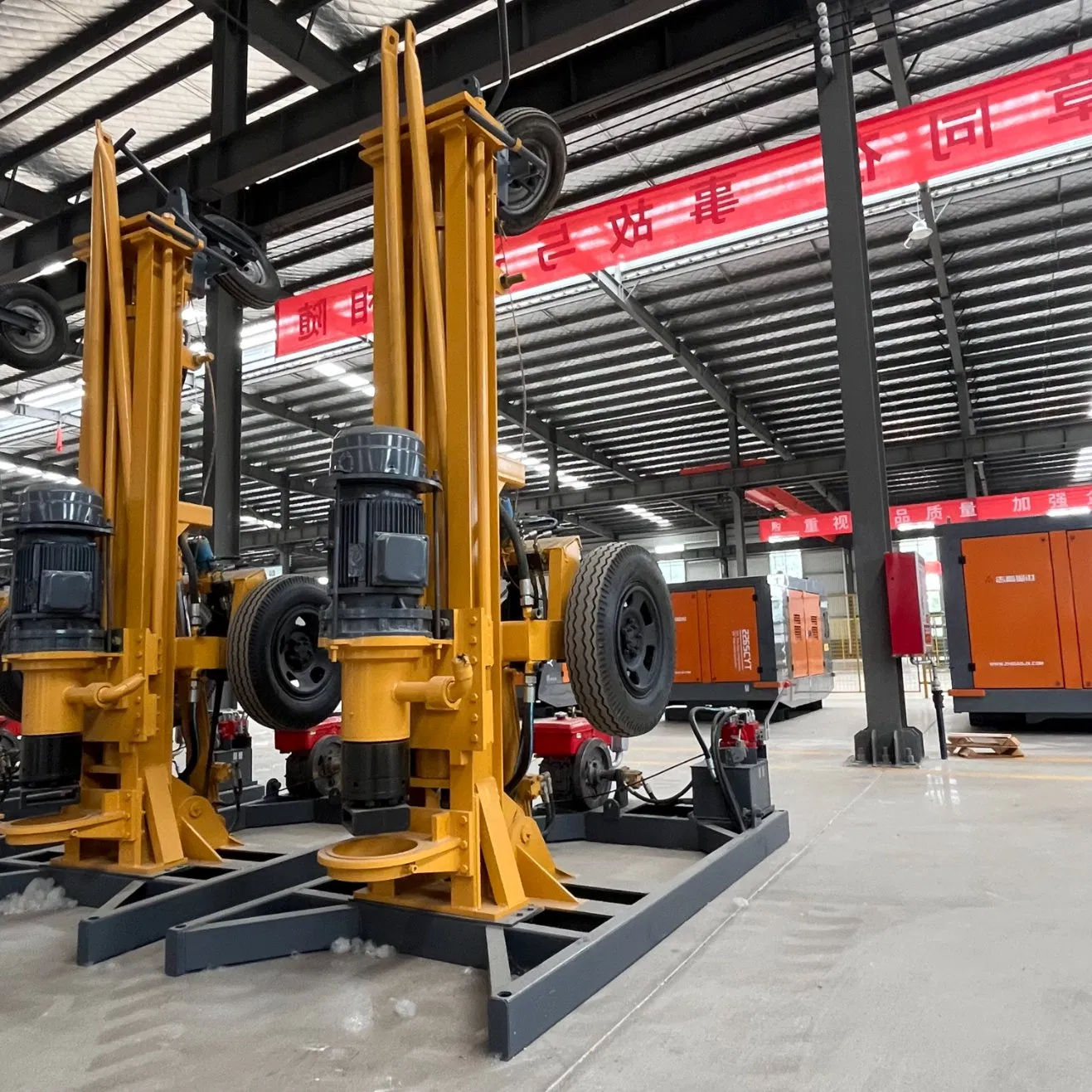

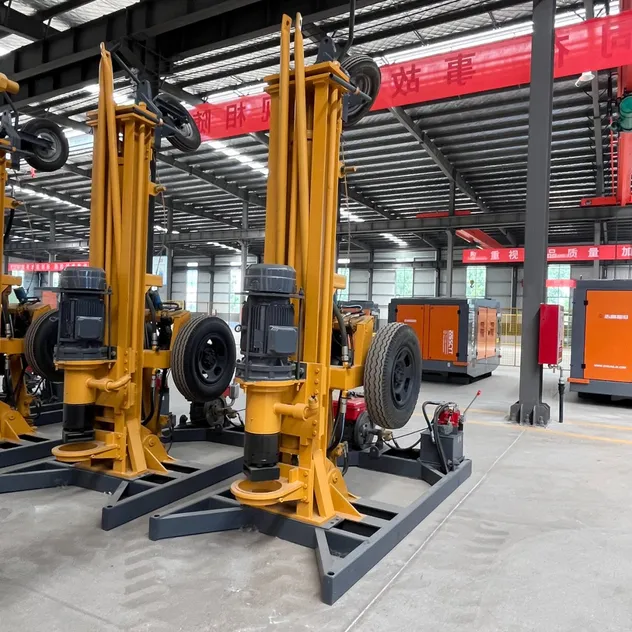

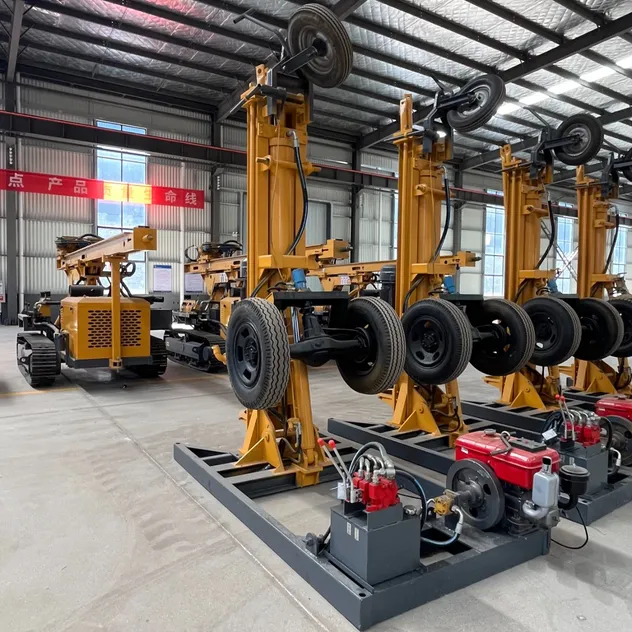

Portable Diesel Water Well Drill Rig is a compact, high-efficient small-scale drilling equipment designed mainly for digging water wells. Powered by a diesel engine, it boasts strong power output—ideal for handling different soil types like clay, sand, and even soft rock.
Its "portable" feature means it has a lightweight structure and is easy to transport, making it perfect for rural areas, remote construction sites, or small-scale farming operations where large drilling machines are hard to reach. It combines fast drilling speed with simple operation, saving both time and labor for water well construction.
🛠️
Main Applications
Rural Water Supply: Domestic and centralized water supply wells.
Agricultural Irrigation: Farmland, orchards, and greenhouses.
Remote Sites: Temporary wells for highways, railways, and mining camps.
Emergency Rescue: Urgent drinking water for disaster zones.
📊
Technical Specifications
| Item Description |
Data Specification |
| Engine Power | 30HP |
| Rotary Head Torque | 1800N.m |
| Hydraulic Working Pressure | 20Mpa |
| Piling Height | 1-3m |
| Borehole Diameter | 50-300mm |
| Borehole Depth | 100m |
| Air Consumption | 6m³/min |
| Climbing Ability | 35° |
| Dimensions (LxWxH) | 2300*1300*2200mm |
🛡️
After-Sales Service
- Standard Warranty: 12 months or 2,000 operating hours.
- Global Support: 24/7 technical assistance and spare parts supply.
- Training: Comprehensive on-site or remote operation training.
- Warranty Extension: Optional coverage up to 36 months.
🏭

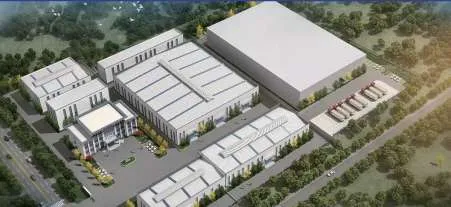

Manufacturing Excellence
We are a heavy machinery enterprise specializing in the research, development, and production of water well and prospecting equipment. Our machinery is known for high drilling efficiency, low construction cost, and reliable operation. We provide professional transportation and door-to-door delivery with specialized training services for global clients.
❓
Frequently Asked Questions
Q1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory produces water well drilling rigs, core rigs, and air reverse circulation rigs exported to hundreds of countries.
Q2. How can I inspect the goods before shipping?
We support on-site factory inspections, third-party designated inspection companies, and real-time video inspections.
Q3. What is your typical delivery cycle?
In-stock machines are delivered within 7 days. Standard production takes 15-20 days, while custom orders require 25-30 days.
Q4. Do you provide export documentation?
Yes, we provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
Q5. Can the equipment be customized?
Absolutely. Our engineering team provides tailored designs and configurations to meet specific geological or project requirements.
Q6. What types of rock can this rig handle?
It is designed for clay, sand, and medium-hard rock with a hardness rating of F=8-12.
