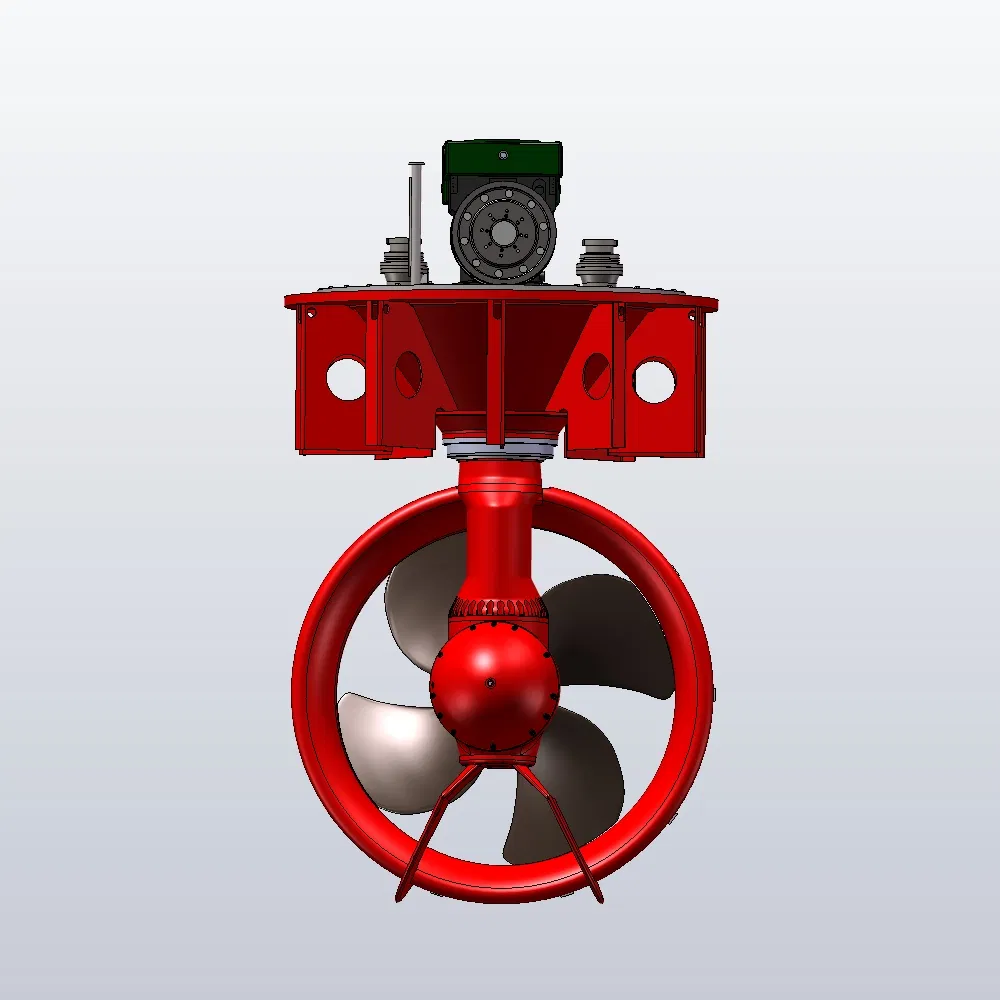

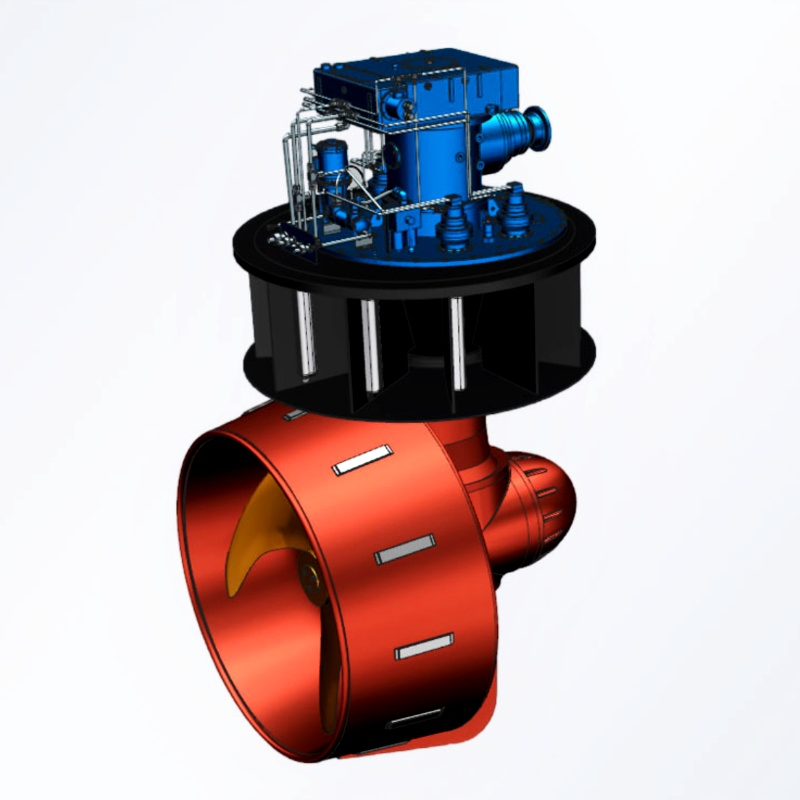

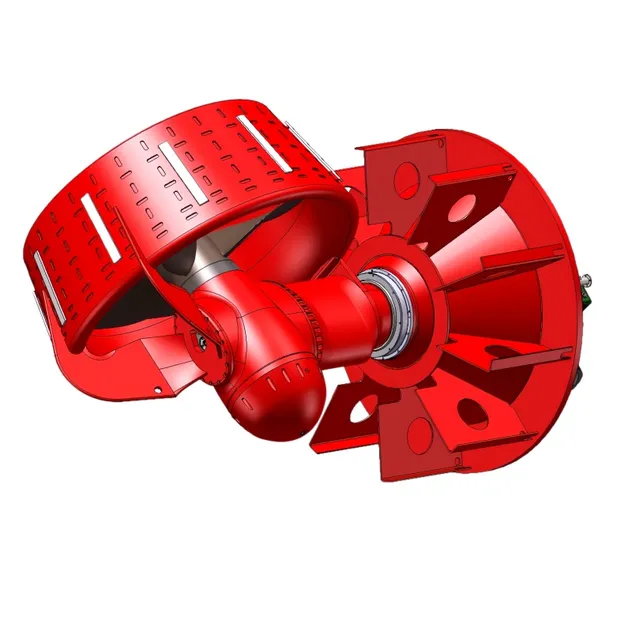

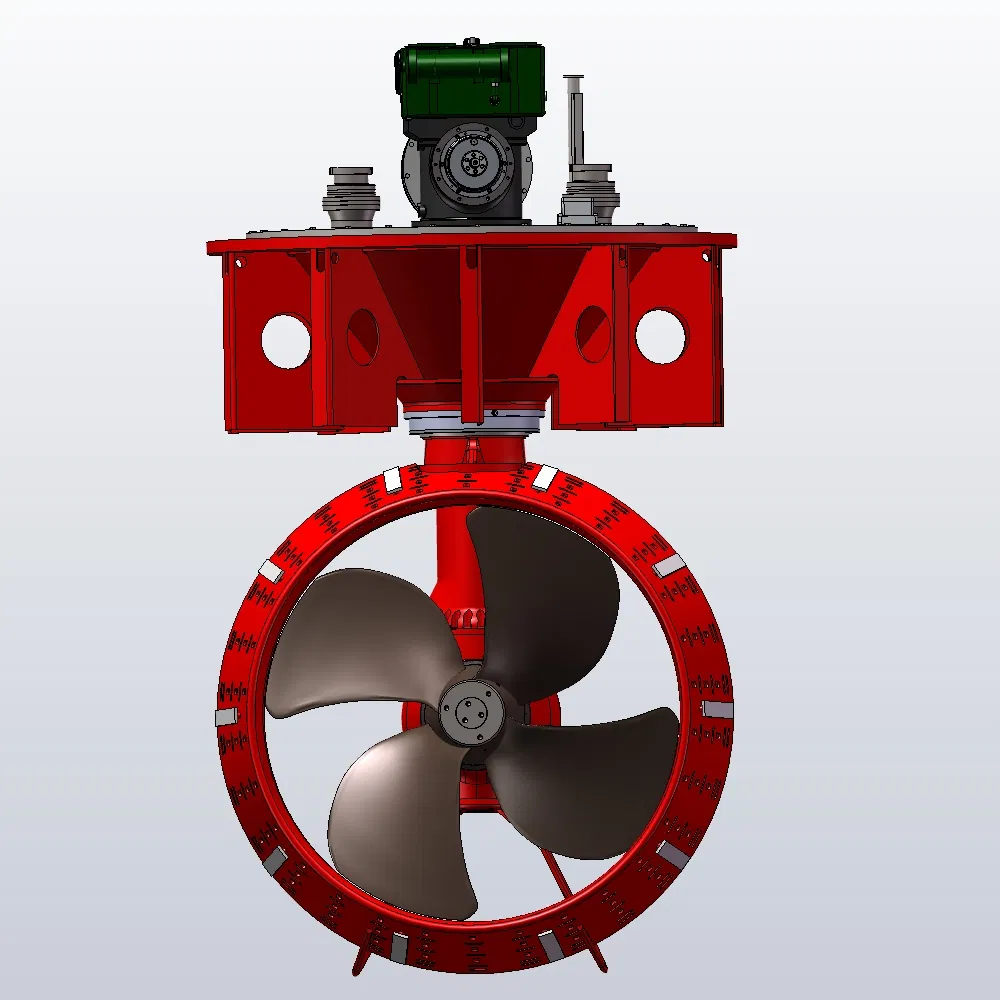

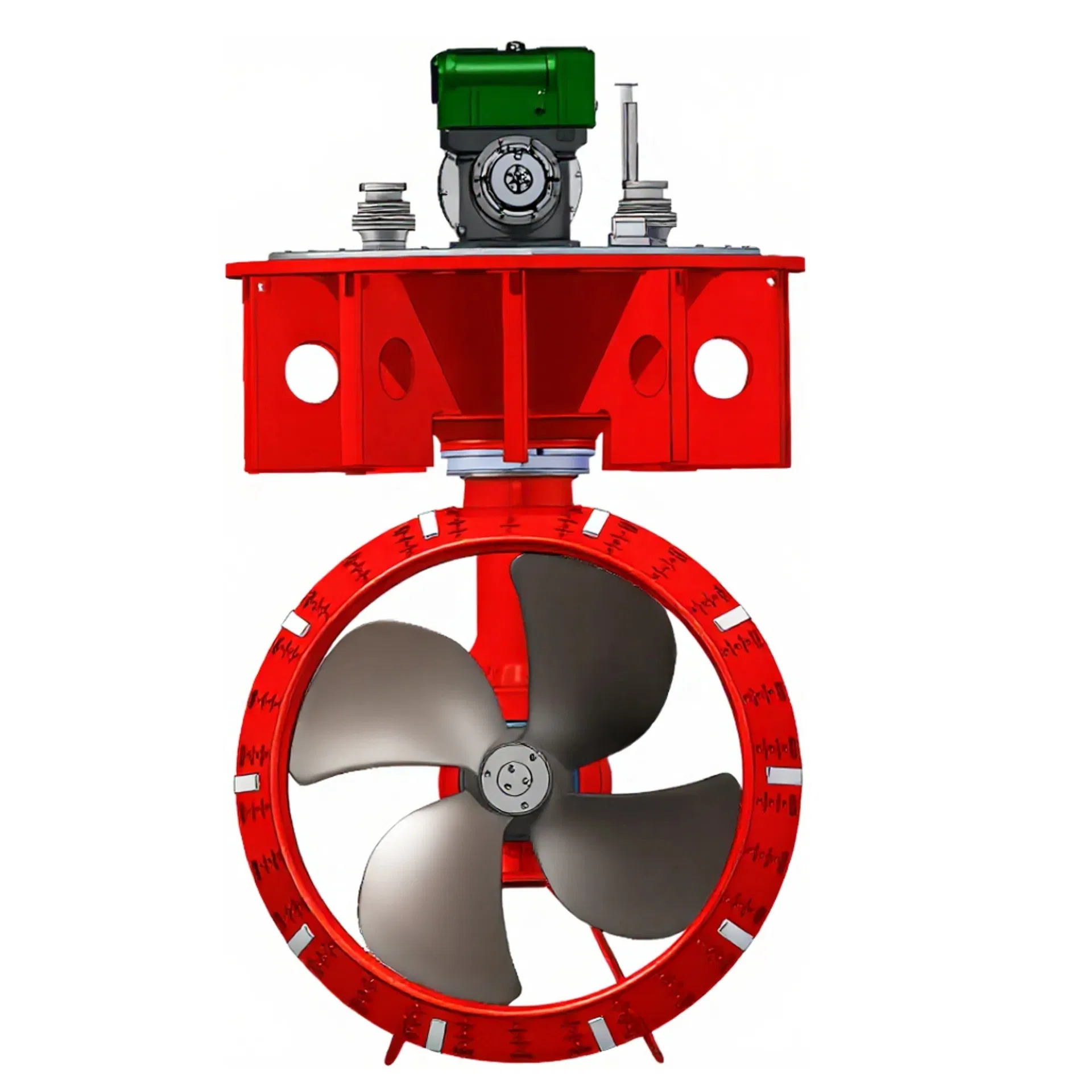

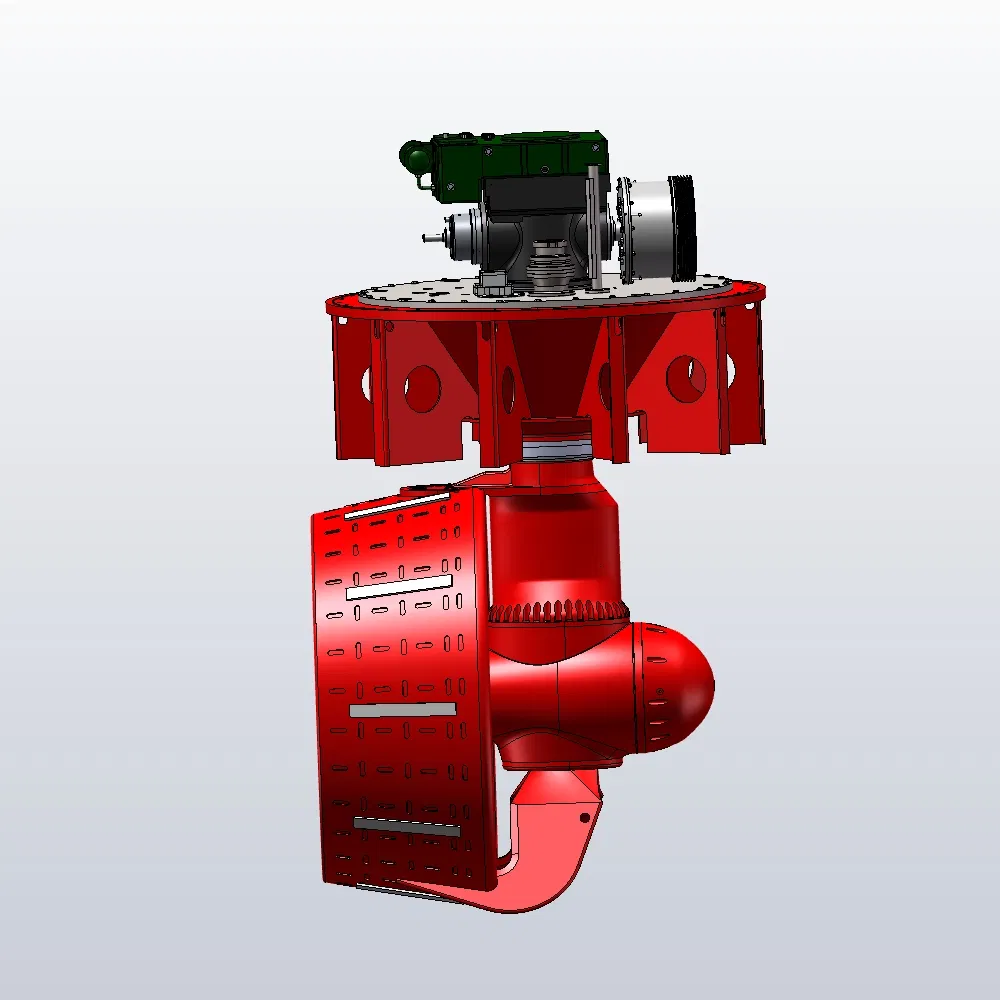

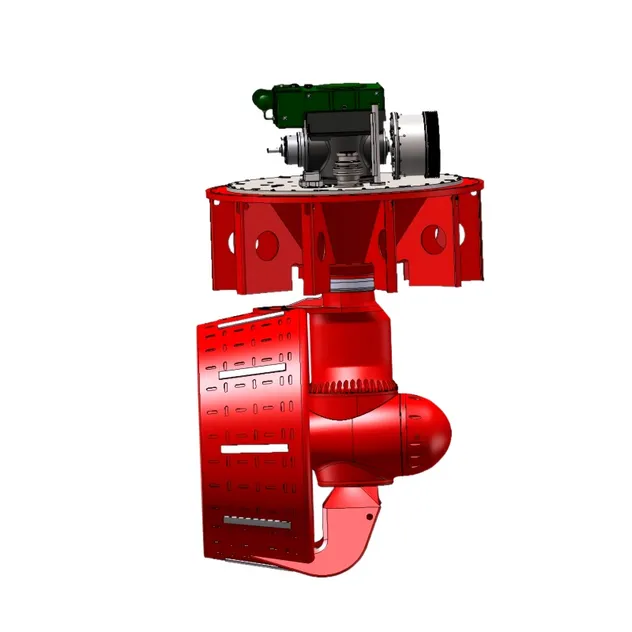

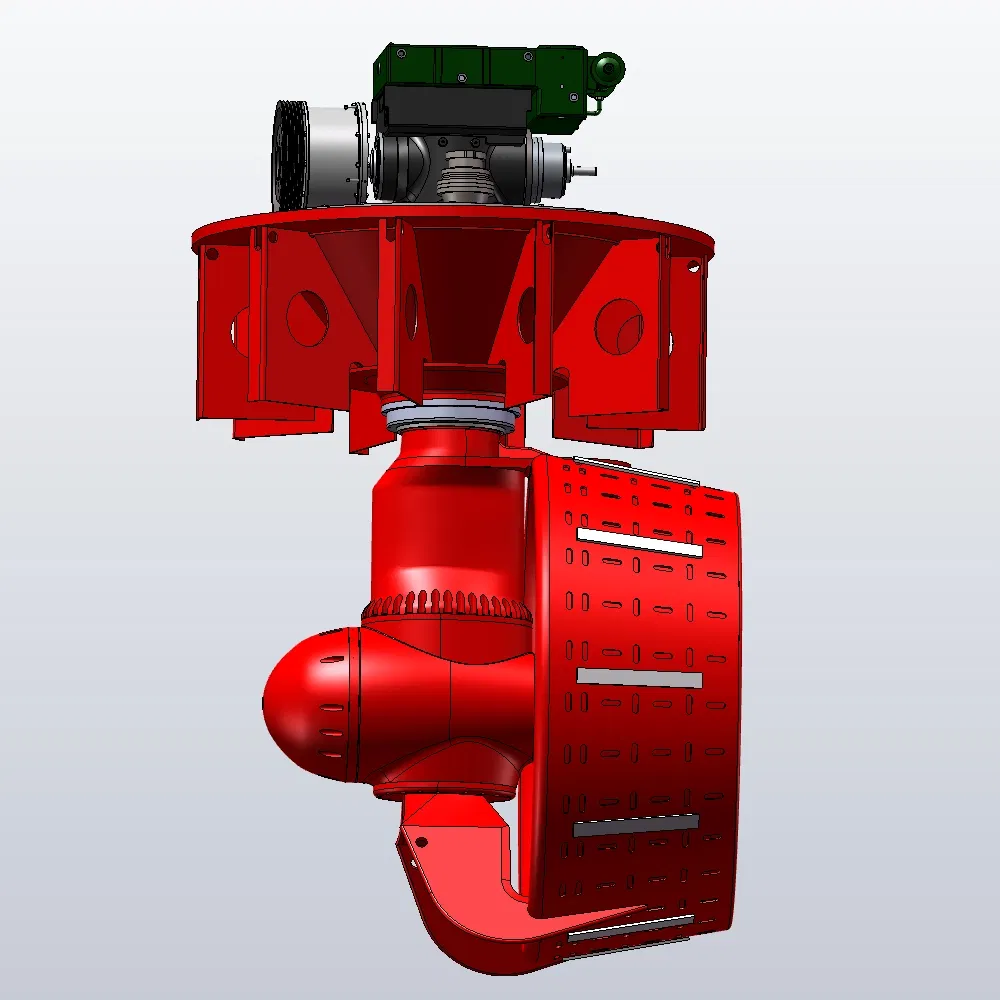

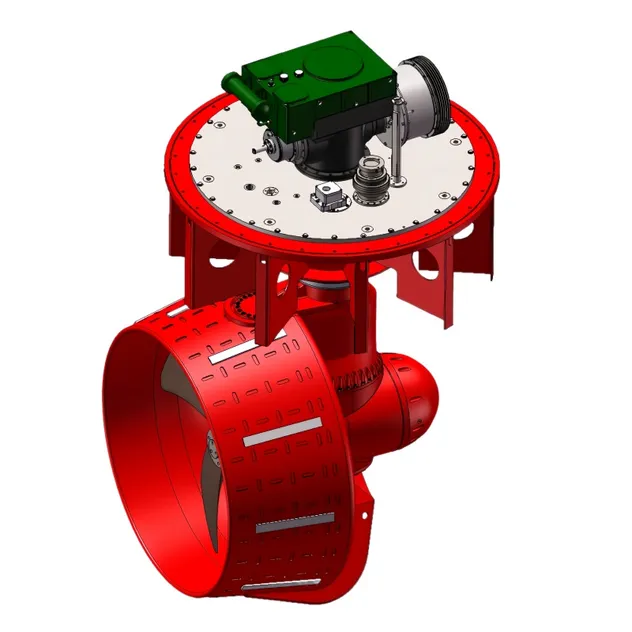

Our rudder thrusters represent the cutting edge of modern marine propulsion technology. At their core is a propulsion unit capable of continuous 360-degree rotation around a vertical axis, integrating both propulsion and steering functions into one system.
Through Z-drive transmission, the engine's power is efficiently transmitted to the propeller while the entire pod unit can rotate freely, instantly changing the thrust direction. This enables vessels to perform complex maneuvers like sideways movement and spot turns - capabilities unattainable with traditional propulsion systems.
| Parameter Name | Details | Parameter Name | Details |
|---|---|---|---|
| Product model | CRP-007 | Gear ratio | 1:1.5, 1:2.88 |
| Maximum rated power | 1000-5000kW (Customizable) | Protection level | IP56 or higher |
| Propeller type | 4-blade/5-blade fixed propeller | Design standards | ABS, DNV, GL, CCS, BV |
| Thrust range | Up to 150 tonnes | Input speed | 900-1800 rpm |
• Warranty: 12 months or 2,000 operating hours.
• Support: 24/7 technical assistance and global spare parts supply.
• Training: Comprehensive on-site operation and maintenance training.

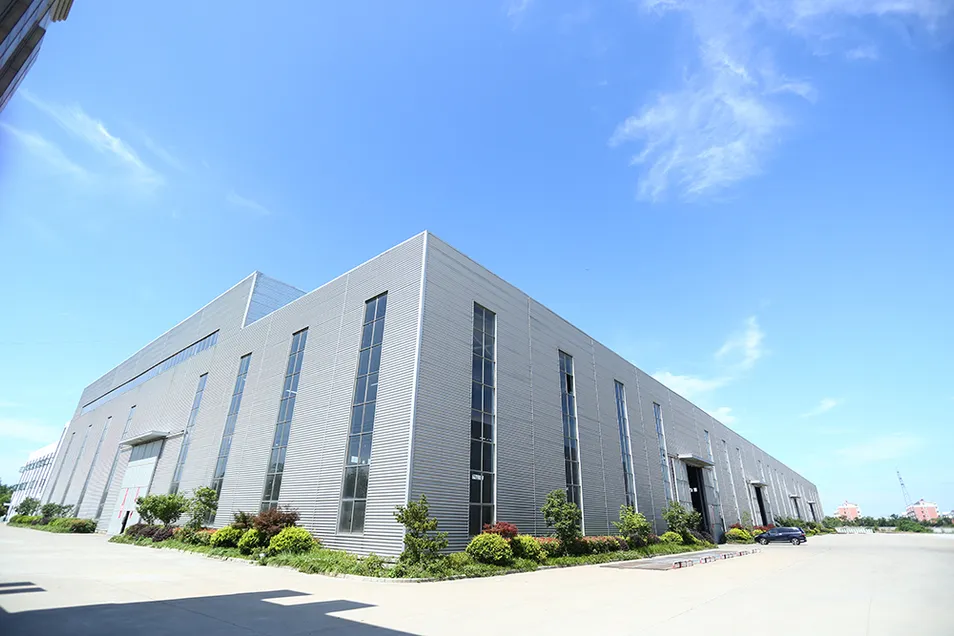

With over 10 years of expertise in high-end marine equipment manufacturing, we provide ISO 9001 certified machinery. Our solutions are backed by R&D innovation and strict quality control for vessels in 20+ countries.
