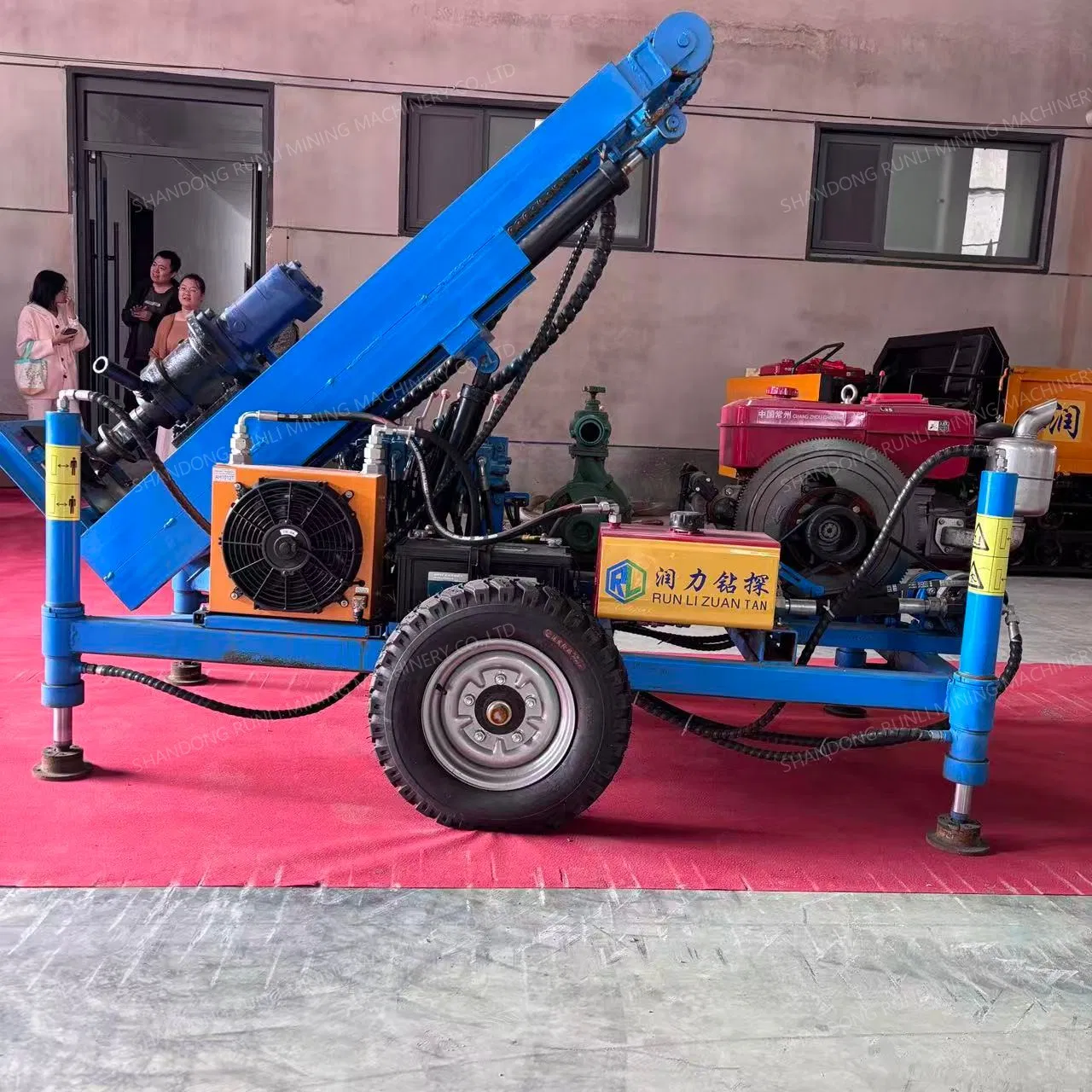

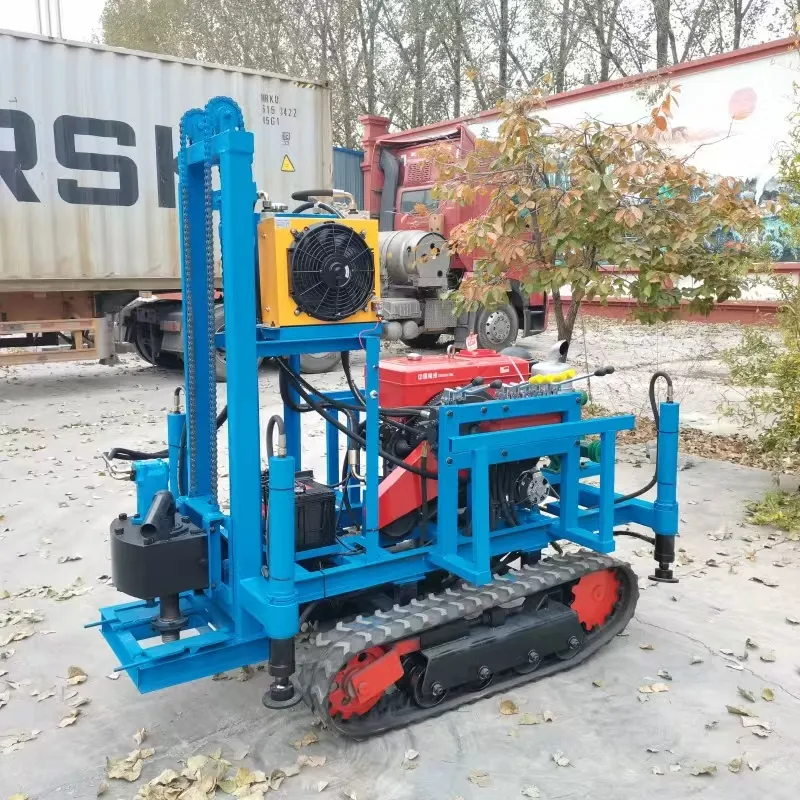

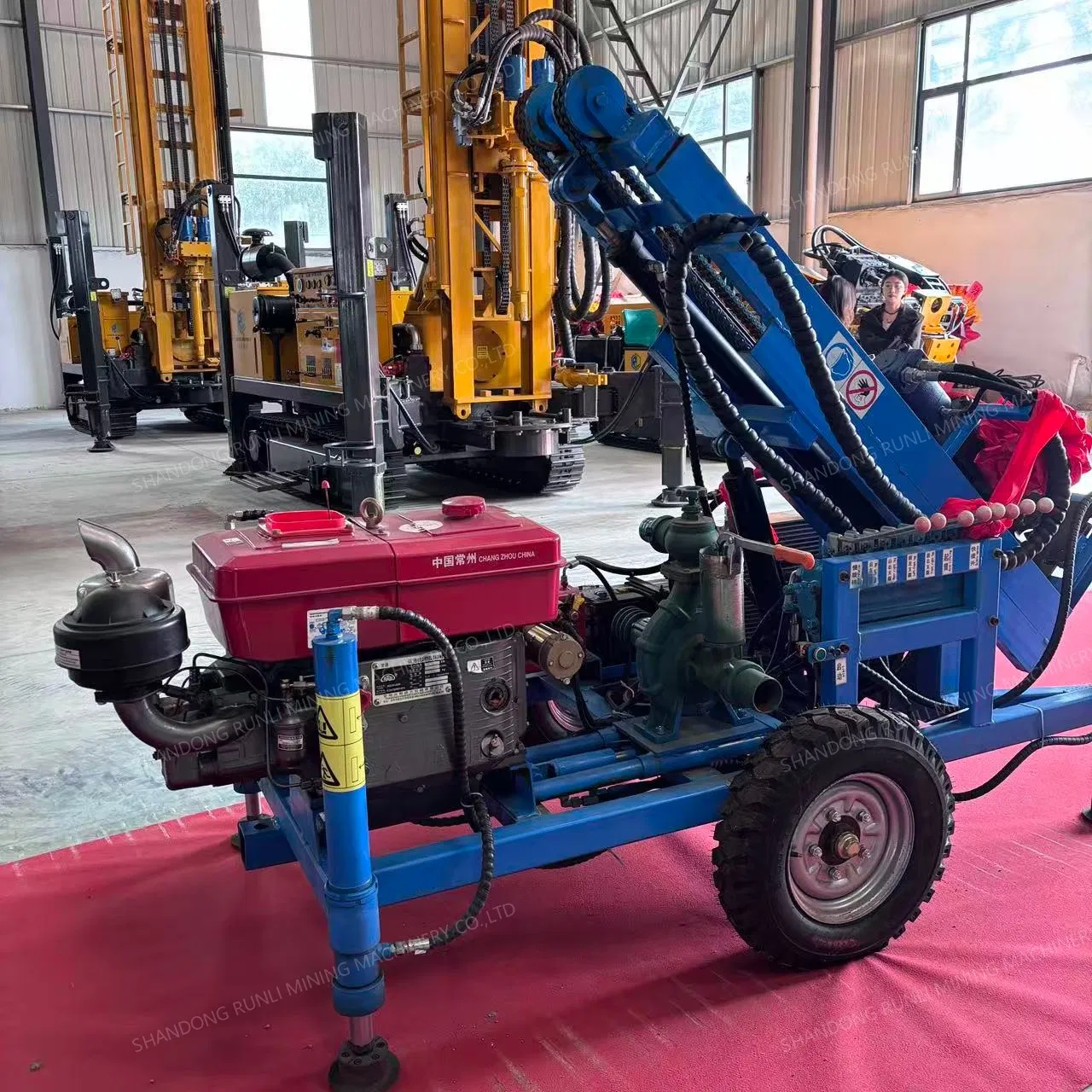

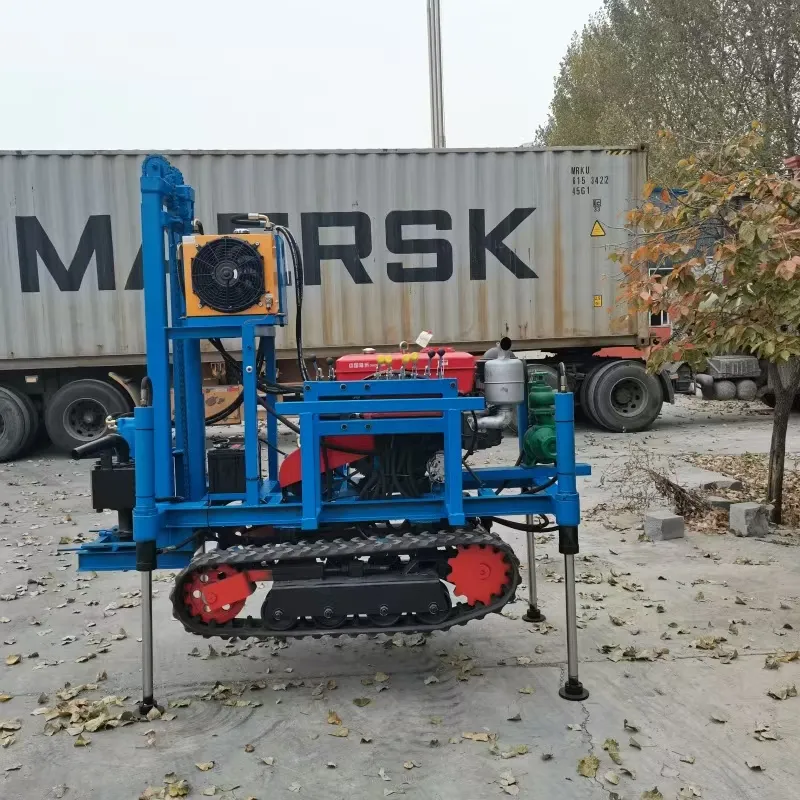

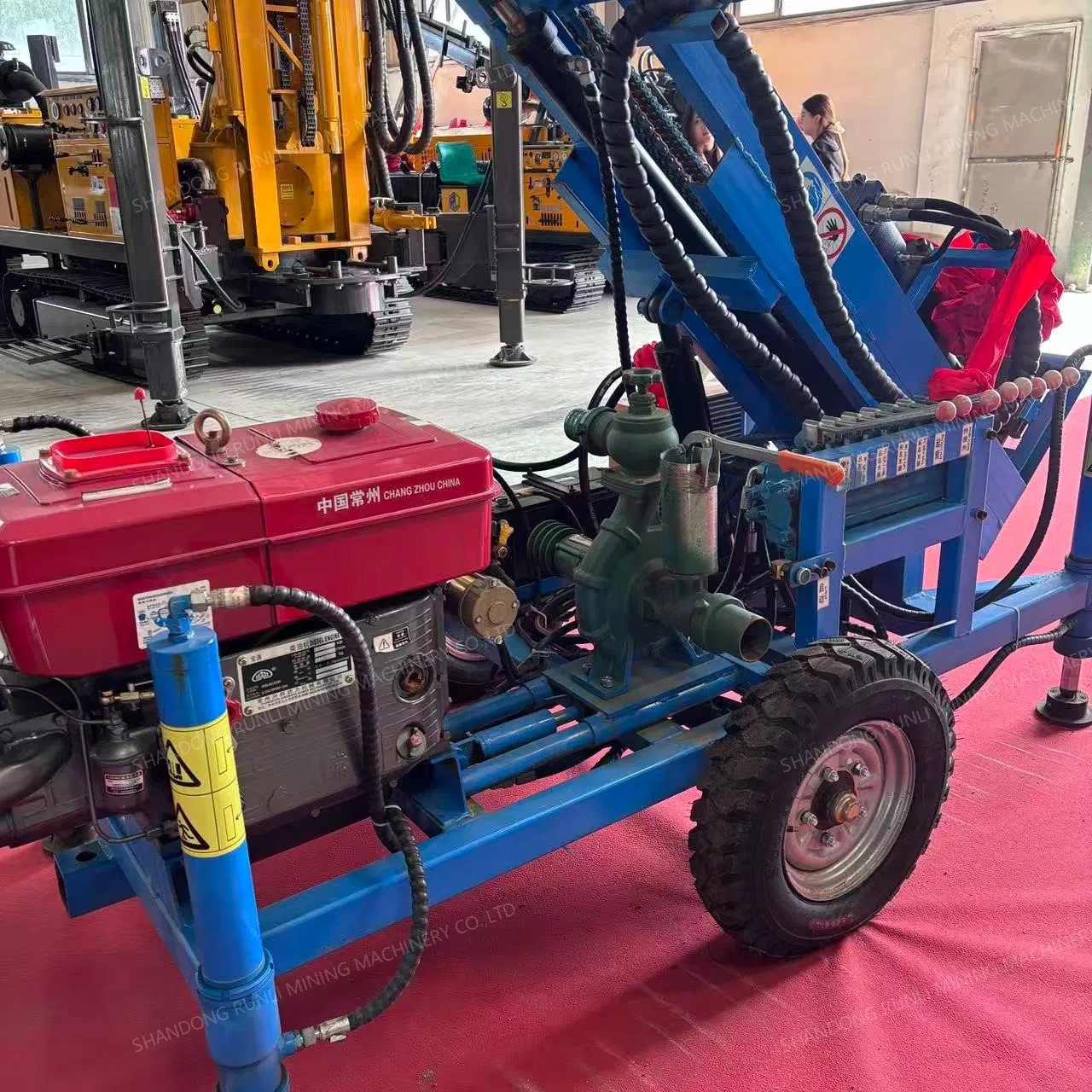

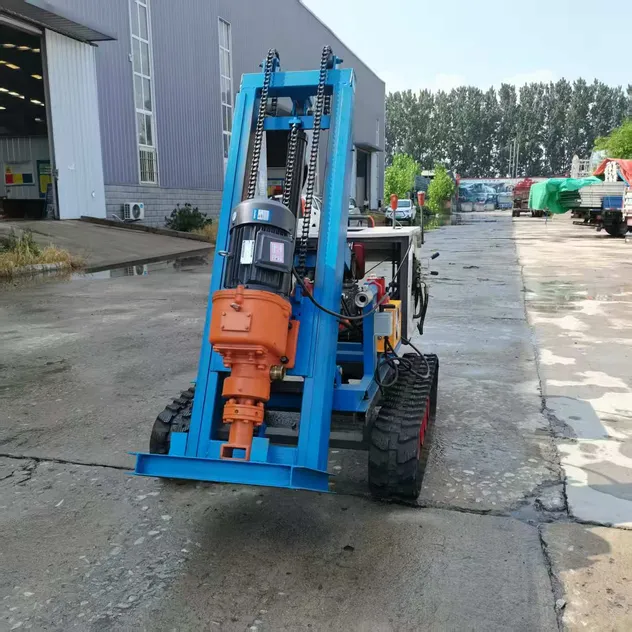

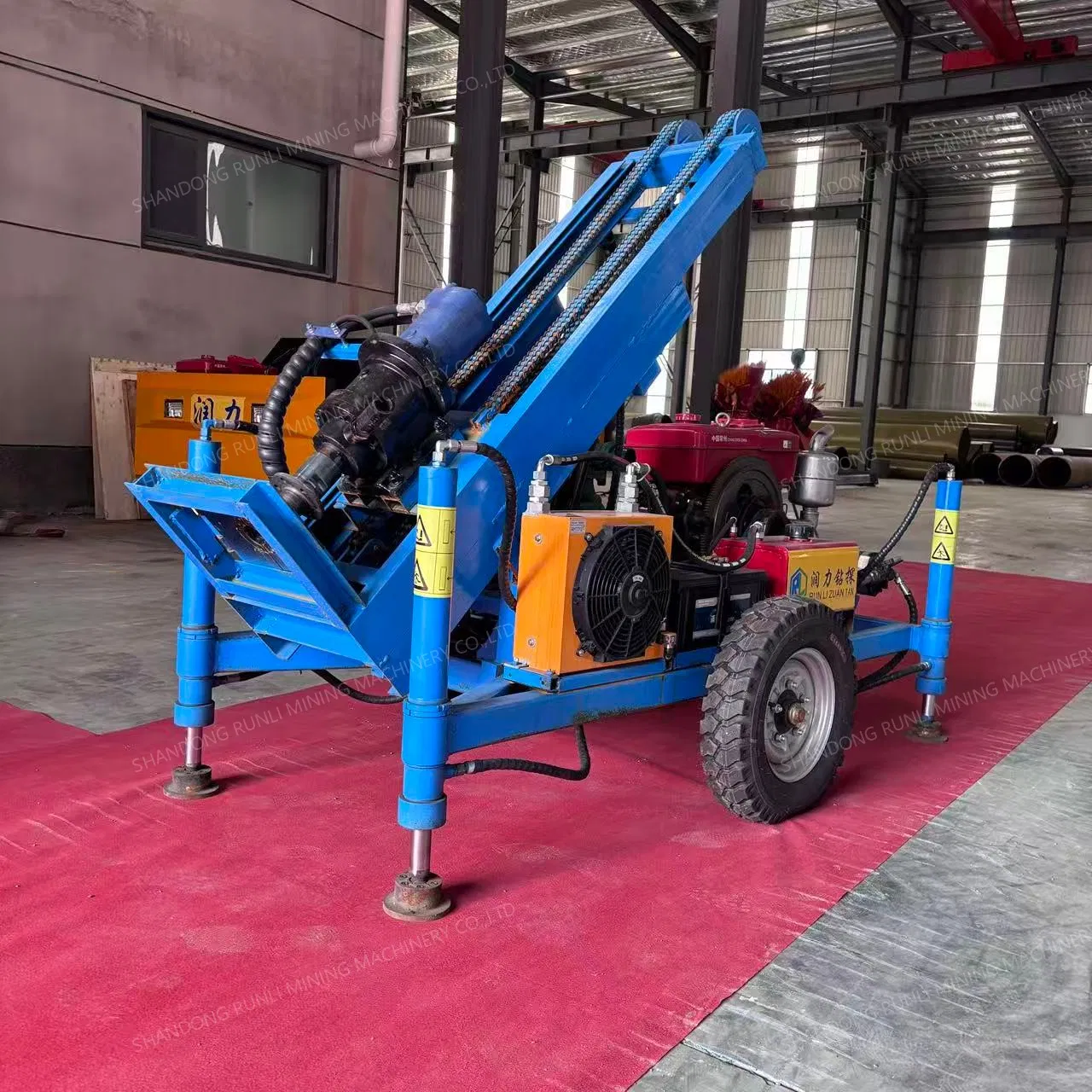

Portable Diesel Water Well Drill Rig High Efficient Small Water Well Drilling Rig
The Portable Diesel Water Well Drill Rig is a compact, high-efficient small-scale drilling equipment designed mainly for digging water wells. Powered by a diesel engine, it boasts strong power output—ideal for handling different soil types like clay, sand, and even soft rock. Its "portable" feature means it has a lightweight structure and is easy to transport, making it perfect for rural areas, remote construction sites, or small-scale farming operations where large drilling machines are hard to reach.
Main Applications:
• Engine: High-torque, low-emission Tier III diesel engine (strong power, low pollution).
• Drilling System: Wear-resistant, speed-adjustable drill bit (fits clay, sand, soft rock) for fast, smooth drilling.
• Portable Frame: Lightweight durable steel frame (foldable, easy to disassemble/transport).
• Control Panel: User-friendly panel with clear indicators for real-time monitoring.
• Cooling System: Efficient water cooling prevents overheating.
• Safety Devices: Overload protection and emergency stop systems.
| Item | Data / Specification |
|---|---|
| Model | RL150 |
| Rig weight | 1.2t |
| Dimensions (LxWxH) | 1900*900*1800mm |
| Engine power | 22HP / 25HP / 29HP / 30HP / 32HP |
| Rotary head torque | 1800N.m |
| Hydraulic oil pump | Single pump |
| Hydraulic loading system | Cylinder chain pressure |
| Hydraulic working pressure | 20Mpa |
| Walking speed | 7-15km/h |
| Carriage travel distance | 2.8m |
| Borehole diameter | 50-300mm |
| Borehole depth | 150m |
| Climbing ability | 35° |
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

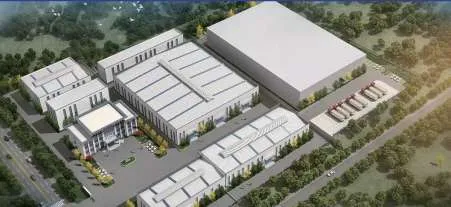

Our equipment features high drilling efficiency, low construction cost, and reliable operation. We specialize in research, development, and production of water well, prospecting, and perforating machinery. Our machinery has been exported to Australia, Africa, the Middle East, Central Asia, and Southeast Asia, receiving high praise for quality and performance.
