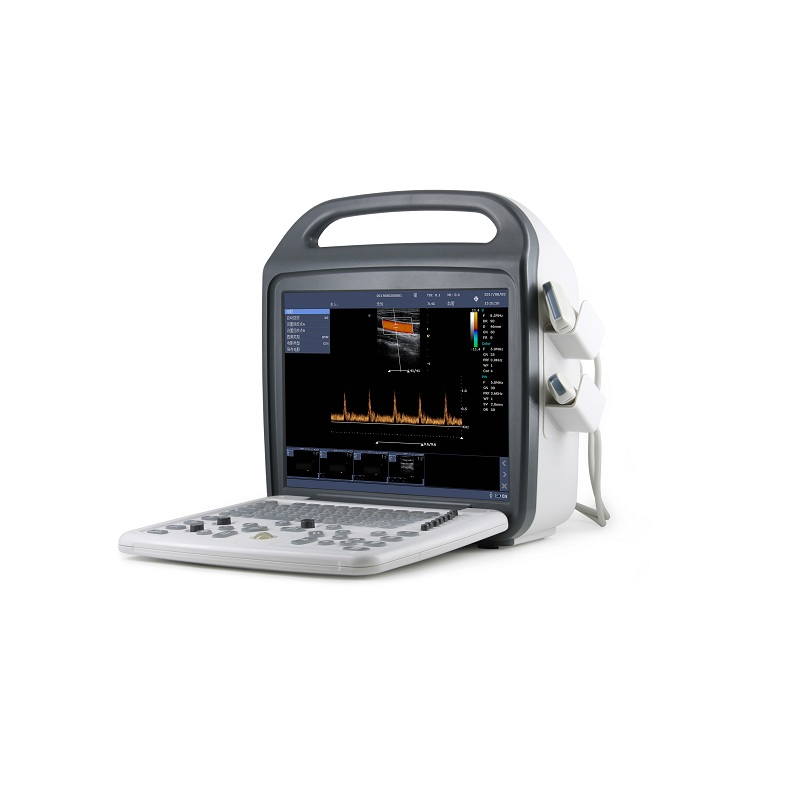

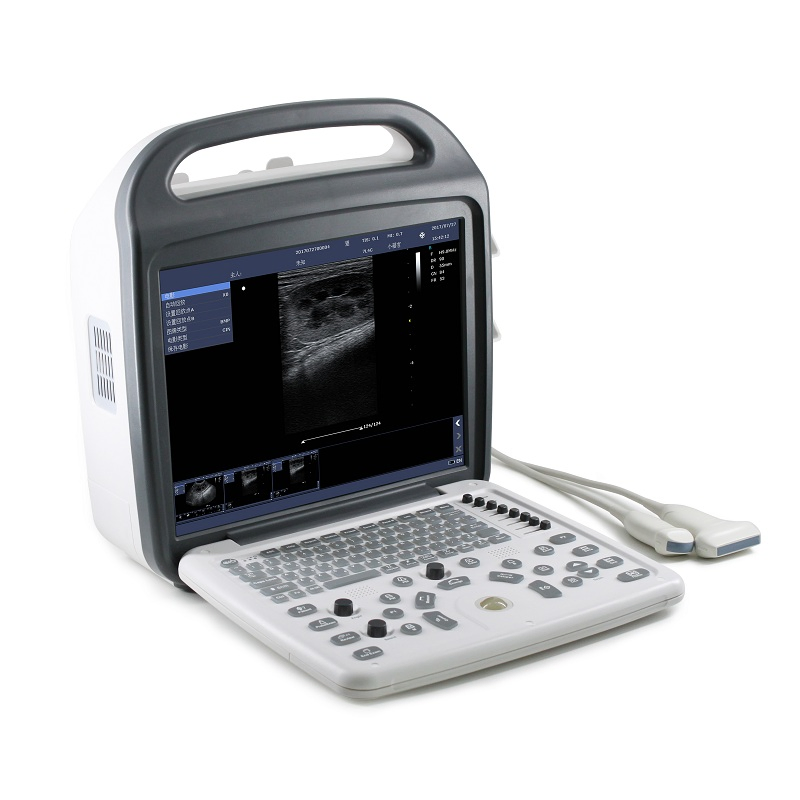

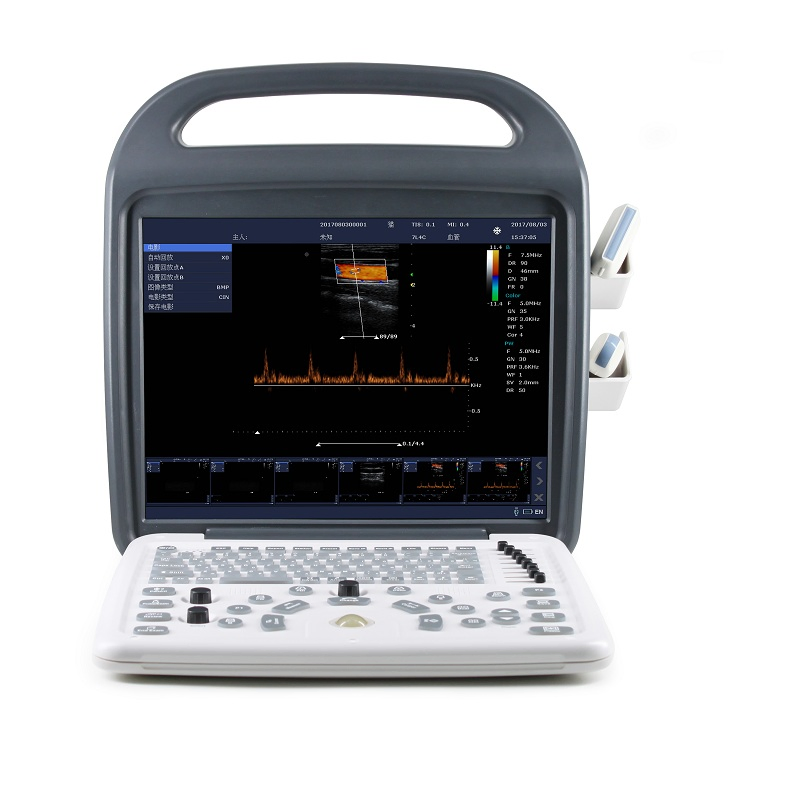

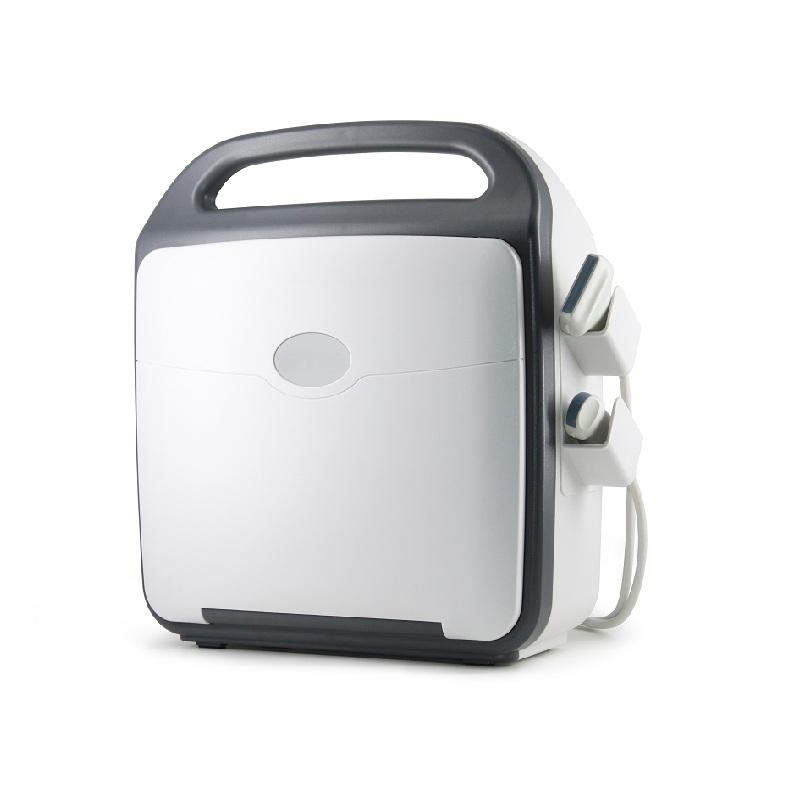

Umus002 Vet Ultrasound System--Portable, 320mm Depth, Dicom 3.0, 500GB Storage

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Ultrasound Scanner

📊

Basic Specifications

Model NO.:UMUS002

Certification:CE, FDA, ISO13485

Display Size:15-Inch LCD

Probe Type:Linear, Micro-Convex

Probe Elements:128 Elements

Scanning Depth:320 mm

Dynamic Range:30-100 dB

Frame Rate:30 FPS

Internal Memory:500 GB (Expandable)

Weight:7.5 Kg

🩺

Product Overview

The UMUS002 Diagnostic Ultrasound System is a state-of-the-art, full digital color Doppler system designed for professional use. It offers exceptional image quality, ease of use, and reliable performance, making it an ideal choice for imaging a wide variety of subjects including small to large animals, livestock, and exotic species.

⭐

Key Features

High-Resolution Display: 15-inch LCD screen for clear and detailed imaging.
Advanced Probe Technology: 128-element probe supporting linear and micro-convex configurations.
Color Doppler Imaging: CFM, PW, and PDI for comprehensive blood flow analysis.
Multiple Imaging Modes: Supports B, 2B, 4B, M, B/M, B/CFM, B/PDI, B/PW, and more.
Deep Scanning: Maximum scanning depth of 320 mm.
Real-Time Imaging: High frame rate of 30 fps with 256 shades of gray.
Ergonomic Design: Backlit keyboard and lightweight 7.5kg portable frame.
Data Management: DICOM 3.0 compatibility with built-in workstation.

📋

Technical Specifications

Attribute Name	Attribute Value

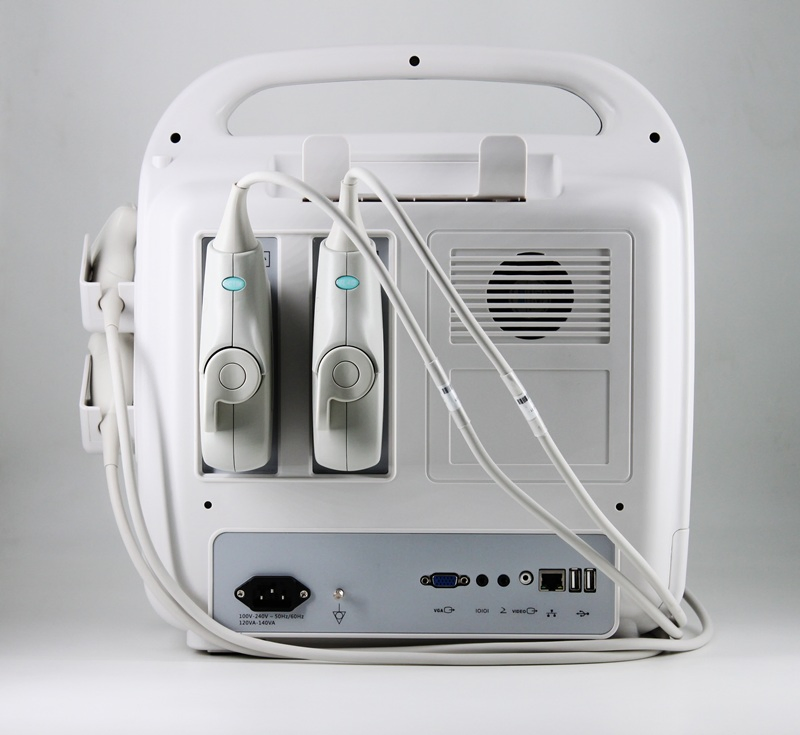

Probe Ports	2 ports for connecting multiple probes
Internal Memory	500 GB (expandable to ≥ 1 TB)
Data Storage Formats	JPG, BMP, FRM, CIN, AVI
Connectivity	USB, S-Video/VGA output
Power Supply	Lithium-ion battery or AC (110-230V, 50Hz)
Dimensions	400 x 172 x 394 mm

🖼️

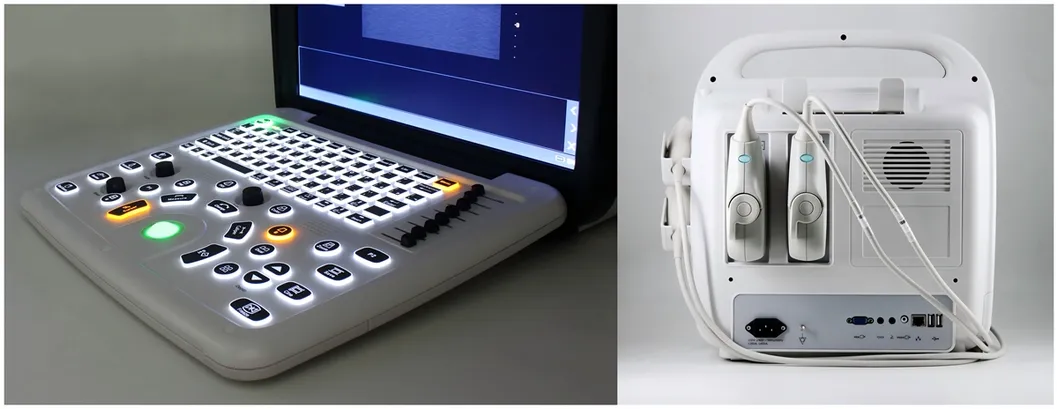

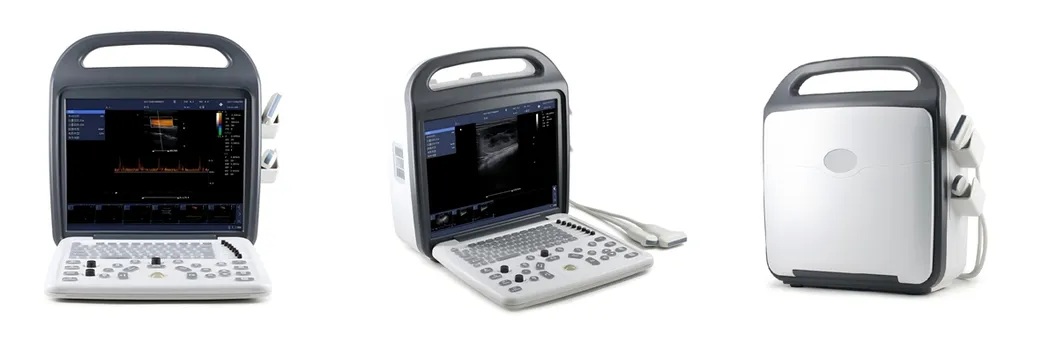

Detailed Visuals

📦

Packaging & Installation

❓

Frequently Asked Questions

What applications is the UMUS002 suitable for?

It is ideal for abdominal, cardiac, musculoskeletal, and obstetric imaging across a wide range of species including rodents, cats, dogs, horses, and livestock.

Does the system support professional data integration?

Yes, it is DICOM 3.0 compatible, ensuring seamless integration with clinic and hospital management systems.

How portable is the UMUS002 unit?

The system weighs only 7.5 kg and features a compact design (400 x 172 x 394 mm), making it suitable for both clinic and field use.

What imaging modes are available?

The system supports B, 2B, 4B, M, B/M, Color Flow Mapping (CFM), Pulsed Wave Doppler (PW), and Power Doppler Imaging (PDI).

What is the storage capacity for patient images?

The unit comes with a standard 500 GB internal hard drive, which is expandable to 1 TB or more for extensive data management.

Can the system operate without a direct AC power source?

Yes, it is equipped with a high-capacity Lithium-ion battery for mobile operation, in addition to standard AC power compatibility.
